Product Details:
Payment & Shipping Terms:
|
| Keywords: | 10M Fiber Ethernet Media Converter | Connection Switch: | 2-position 10Base-T Switch On RJ-45 Side |
|---|---|---|---|
| Data Rate: | 10Mbps | Fiber Type: | Multi-mode |
| Connector Type: | ST Fiber | Wavelength: | 850nm |
| Distance: | 2km | Installtions: | DIN-Rail & Wall-mount |
| High Light: | 10BASE-FL Fiber Ethernet Media Converter,Din Rail Fiber Ethernet Media Converter |
||

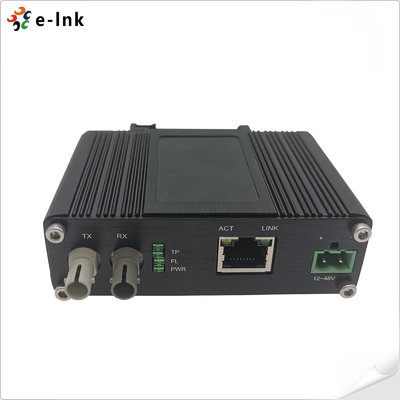

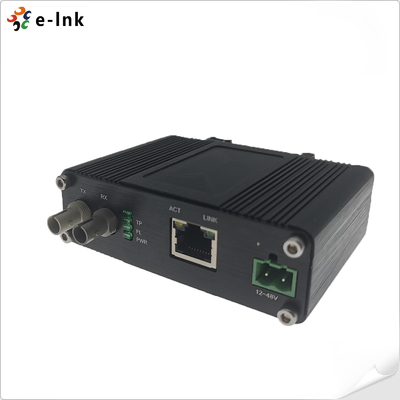

Din Rail Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter ST Connector 2KM
10M Fiber Media Converter Advantages
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
Fiber Optical Media Converter Technical Indexes
|
Standards |
IEEE 802.3 |
|
10 Base-T |
|
|
10 Base-FL |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3x Full duplex and flow control |
|
|
Conversion Means |
Store and Forward mode or Cut-Through mode |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
Wavelength |
850nm |
|
Buffer Space |
Built in 128Kb RAM for data buffer |
|
Flow Control |
Full duplex: flow control; |
|
Cable Length |
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL |
|
Transmission type |
Base band |
|
Connection switch |
2-position 10Base-T switch on RJ-45 side (hub or W/S) |
|
LED Indicators |
|
|
PWR |
Power Status |
|
ACT |
Data LINK Status |
|
TP |
Ethernet Status |
|
FL |
Fiber LINK Status |
Fiber Etherent Media Converter Overview
The E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optic media converter converts your existing 10Base-T Ethernet network into a 20000 meter long 10Base-FL network through single mode or multimode fiber optic cables. It is a hardened product with a working temperature range of -40 ° C to 75 ° C and a reinforced aluminum casing. The Ethernet port supports both half duplex and full duplex modes. The sturdy hardware design ensures that your Ethernet device can withstand harsh industrial conditions. The LNK-IMC10FST series is easy to install on DIN rails or distribution boxes.
Outdoor 10Mbps Fiber Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC10FST-MM |
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
