E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial 10G OEO Converter | Transmission Speed: | 8.5Gb/s-11.7Gb/s |
|---|---|---|---|
| Transmission Distance: | SFP+ Module Up To 80km | Input Power: | 12~48VDC Redundant Power |
| DIP Switch: | 4-digit DIP Switch Function | Mounting Options: | DIN-Rail Mount |
| High Light: | Industrial 10G OEO Converter,3R Repeater 10G OEO Converter |
||

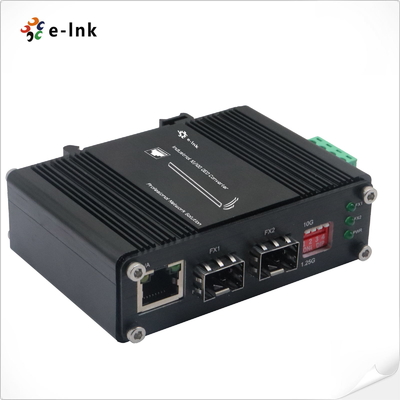

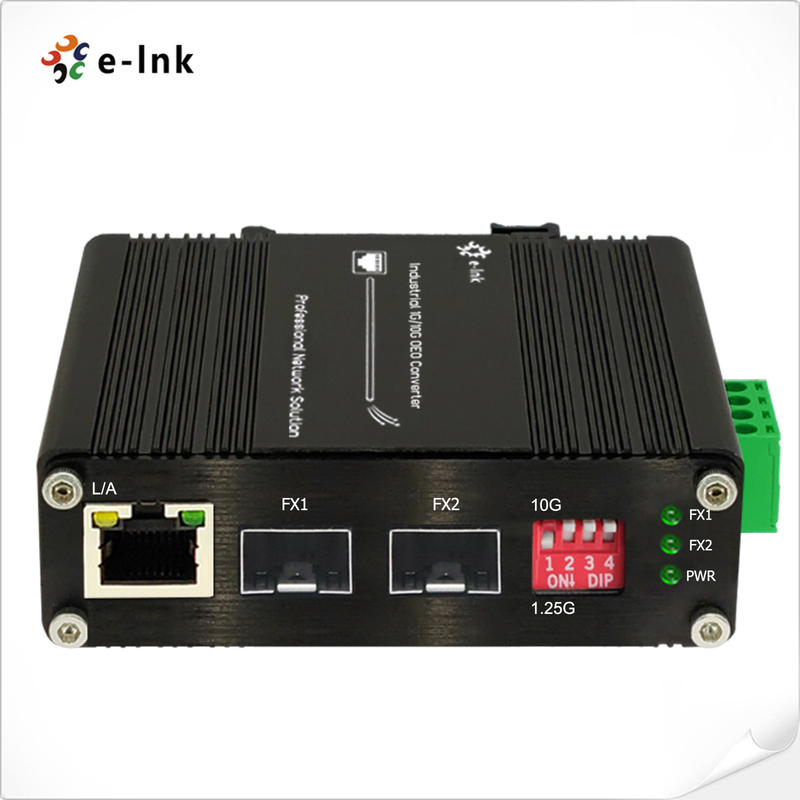

Industrial 10G OEO Converter SFP+ To SFP+ With 1G Ethernet Media Converter Function
OEO Media Converter 3R Repeater Advantages
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
10G OEO Converter with 1G Ethernet Technical Indexes
|
Equipment function |
3R Repeater |
|||
|
Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|||
|
Interface Type |
SFP+ to SFP+ |
|||
|
Ethernet Media Converter Specifications |
||||
|
Work Mode |
10/100/1000BASE-T to 1000BASE-SX/LX |
|||
|
Port Type |
SFP to RJ45 |
|||
|
Electrical and Mechanical |
||||
|
Input Power |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption |
8W Max |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
1.25G/10G |
ON - 1.25~8.5G |
OFF - 10.3G or 14.025G |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|||
|
Weight |
0.25Kg |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
Din Rail 10G Media Converter Overview
ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter. It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
Industrial DIN Rail Media Converter 10G Ordering Information
|
Model |
Description |
|
ETH-IMC2402-OEO |
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
