Product Details:
Payment & Shipping Terms:
|
| Key Words: | Network Adapter Laptop | USB Interface: | USB-C 3.0 |
|---|---|---|---|
| Power: | USB Bus Powered | Data Rate: | 10/100/1000Mbps LAN Port |
| Dimensions (LxWxH): | 78 X 27 X 18 Mm | Casing: | IP40 Aluminum Case |
| High Light: | IP40 Network Adapter for PC,OEM Laptop Network Adapter,Aluminum Case laptop network adapter |
||

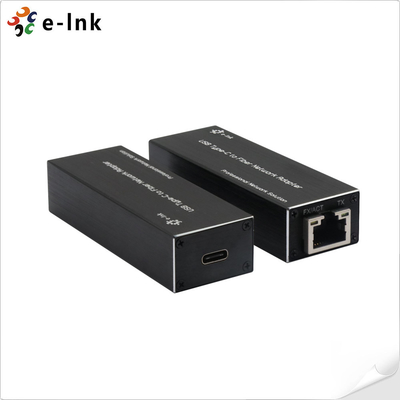

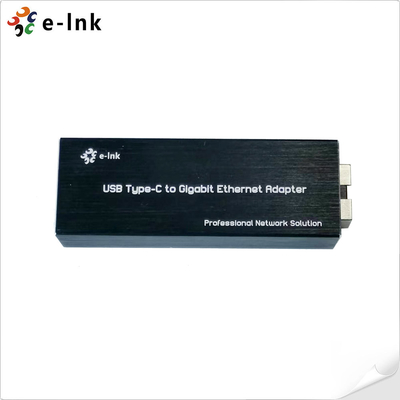

OEM Hot Sale Micro Mini USB 3.0 To Gigabit Ethernet Network Interface Card Adapter
Network Adapter for PC Advantages
►1 x 10/100/1000Mbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot
►Powered directly from the USB ports
►Crossover Detection & Auto-Correction (Auto MDIX)
►Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
►Activity and Link LED indicators
►Compact, lightweight design for maximum portability
USB-C Network Interface Card Technical Indexes
| Standards: | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.1q VLAN tagging | |
| Chipset ID: | Realtek RTL8153B |
| Network Transfer Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Jumbo Frame Support: | 9K max. |
| Other: | Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload |
| OS Compatibility: |
Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.3 to 13.0 VLAN tagging is currently not supported in macOS Linux Kernel 2.6.25 and up - LTS Versions only Chrome OS 55+ |
| Operating Temperature: | 0°C ~ 60°C (32° ~ 140°F) |
| Storage Temperature: | -10° ~ 70°C (14° ~ 158°F) |
| Relative Humidity: | 5% to 90% non-condensing |
Gigabit Network Adpater Overview
E-link LNK-TCU1000 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN Card, Network Connection is more stable and quicker than Wifi access. It can offer 1000Mbps Internet access, providing up to 2000Mbps full-duplex bandwidth capacity. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking for users in a standard-based environment.
10/100/1000 Mbps Ethernet Network Adapter Ordering Information
| Model | Description |
| LNK-TCU1000 | Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter |
| Mounting Options | ► Desktop |
| Power Options | ► No need for an external power adapter (bus powered) |
| Package Contents | ► USB 3.0 Gigabit Ethernet Adapter x 1 |
| ► Quick installation guide x 1 |
