Managed Fiber Switch 8 Port 100M SFP With 1 Port 1000M SFP / TP Combo Uplink

Product Description:

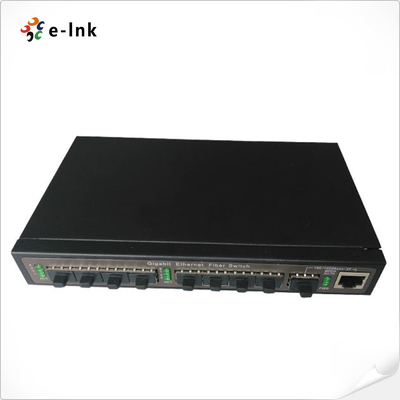

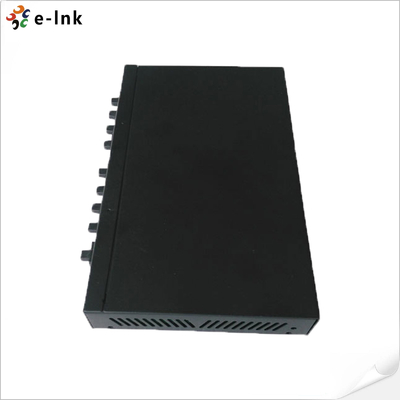

The E-link LNK-FS800M is a nine port all-optic fiber switch featuring 100M of managed speed. It has eight SFP fiber ports access and one Gigabit Combo port (1000M SFP port and 10/100/1000M adaptive RJ45 Ethernet interchange) as the uplink.

The switch enables hot plugging of SFP modules, and is able to work alongside a variety of fiber switches, converters and other devices featuring fiber ports. With its web-based management system, the LNK-FS800M is an ideal choice for any security, electric and traffic system requirements.

Features:

This IT equipment is designed for easy and cost-efficient cable management. It supports a maximum of 8 SFP fiber ports and a single GE Combo port, the two of which are interchangeable. All of the optic ports have improved anti-interference capabilities. As each of the ports is full rate and full-duplex, it provides non-blocking forward capabilities. Moreover, this device has an 8K MAC learning capacity, 1Mbit storage, 4.6G back plane bandwidth and forward cache space. This device can thus be used as a substitute for fiber converters, reducing server faults and simplifying the network structure.

Additionally, the SFP ports are designed to be hot pluggable. This means that new components can be added even when the system is running. By doing so, there is no need to shut down the system for adding new components.

Technical Parameters:

Standard: This switch supports IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, and IEEE802.1d Spanning Tree.

Wavelength: The switch is equipped with 850nm/1310nm/1550nm.

Distance: 100M SFP depending on SFP module, Cat5 100m.

Port: 8 SFP fiber ports with 100Mbps, 1 Gigabit Combo with 1 Gbps, 1000M SFP, 10/100/1000M RJ45.

MAC: This switch has 8K MAC.

Buffer memory space: 1MBit.

Bit error rate: The bit error rate is less than 1/1000000000.

MTBF: This switch has a MTBF of 100000 hours.

Power: DC12V/2A with 12-48V.

Power consumption: The power consumption of this switch is 10W.

Working temperature range: It can work from -10~60℃.

Storage temperature range: -40~80℃.

Humidity: Please keep the humidity within 5%~90% non-condensing.

Dimension: 28mm (H) × 193mm (W) × 119mm (D).

Applications:

Support and Services:

Technical support and services for Fiber Optic Switch include:

• 24/7 online customer service
• Maintenance and repair services
• Customized product design and development
• On-site technical support
• Quality assurance and warranty services
• Software updates and upgrades

Packing and Shipping:

Fiber optic switches must be properly packaged and shipped in order to ensure they reach their destination in perfect condition. Here are the steps to correctly package and ship a fiber optic switch:

• Power off the switch.
• Disconnect all cables connected to the switch.
• Make sure all components of the switch are accounted for and in working condition.

• Select an appropriate box for the switch. The box should be slightly larger than the switch itself.
• Place the switch in the box and add cushioning material to protect the switch during shipping.
• Close the box and securely seal it with tape.

• Choose an appropriate shipping service that meets your needs.
• Label the box with the correct shipping address.
• Drop off the box at the shipping location.

Ordering Information:
