Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4-Port Industrial Ethernet Switch AC Power Input | Power Supply: | 110~230V AC Terminal Block |
|---|---|---|---|
| Ethernet Port: | 4-Port 10/100/1000Base-T RJ45 | Fiber Port: | 1-Port 100/1000Base-X SFP |
| Casing: | Aluminum Case | Installtions: | DIN-Rail & Wall-mount |
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Storage Temperature: | -40°C To 85°C (-40°F To 185°F) |
| High Light: | Aluminum Case Ethernet Switch 4 Port,Ethernet Switch 4 Port Wall Mount |
||

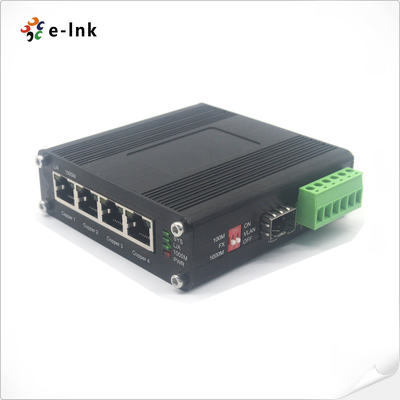

Ethernet Switch 4-Port 10/100/1000Base-T + 1-Port 100/1000Base-X SFP AC Power Input
AC Input Fiber Ethernet Switch Advantages
► 4 ports 10/100/1000BASE-T RJ45 with automatic MDI/MDI-X function

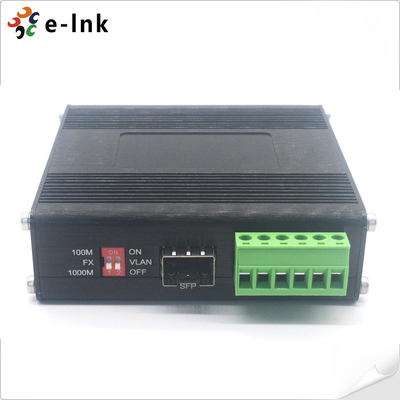

► 1 SFP port, 100Base-FX or 1000Base-X dual mode (DIP switch)
► Support traffic control and broadcast storm protection
► Support frames with a maximum size of 10K bytes
► 110~230VAC terminal block power input
4 port Gigabit Ethernet Switch Technical Indexes
|
Connector |
4x RJ45 10/100/1000Base-T |
|
Optical Port |
1 x SFP 1000Base-X or 100Base-FX (DIP Switch) |
|
Standards |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.1d Spanning Tree |
|
|
IEEE 802.1q VLAN TAG |
|
|
IEEE 802.1p Qos |
|
|
Processing Type |
Store-and-Forward |
|
Forward Filter Rate |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory |
1 Mbit |
|
Max Packet Length |
9K Bytes |
|
Address Table Size |
4K MAC Addresses |
|
Electrical and Mechanical |
|
|
Input Power |
110~230VAC, 6-pin terminal block |
|
Power Consumption |
5W Max. |
|

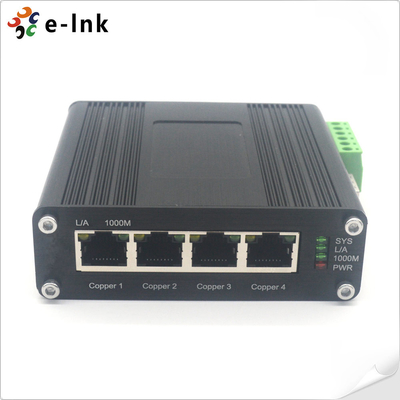

LED Indicators |
|
|
PWR |
Power Status |
|
L/A |
LINK/Activity |
|
SYS |
System Status |
|
1000M |
1000M Fiber Status |
|
Dimensions (WxDxH) |
95 x 95 x 30 mm |
|
Weight |
0.26Kg |
Industrial Fiber Etherent Switch 4-port 10/100/1000Mbps Overview
The LNK-A1400G-SFP Gigabit Ethernet switch has four 10/100/1000M UTP ports and one 100/1000M SFP socket, which can convert four independent 1000Base-TX twisted pair electrical signals into 1000Base-FX optical signals. It expands the network transmission range from 100 meters on copper wire to 120 kilometers (single mode full duplex mode). Due to the use of the latest integrated circuits and high-quality transceivers, this product has stable performance, excellent quality, and reasonable price. It is suitable for small fiber optic Ethernet. Special AC power input design, supporting 110V~230VAC
Industrial 4-port Gigabit Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC-A1400G-SFP |
Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Power Options |
► 110~230VAC Power Supply. Open Wire for Terminal Block |
