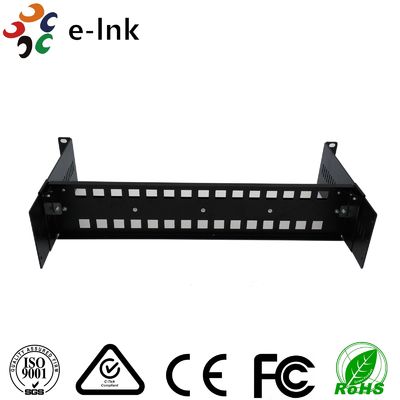

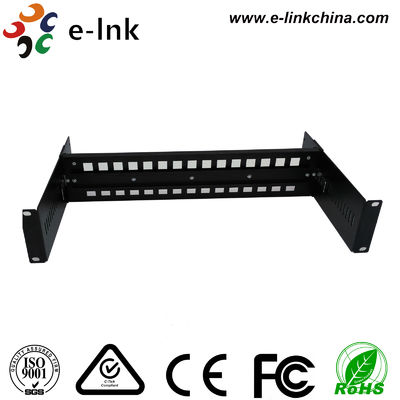

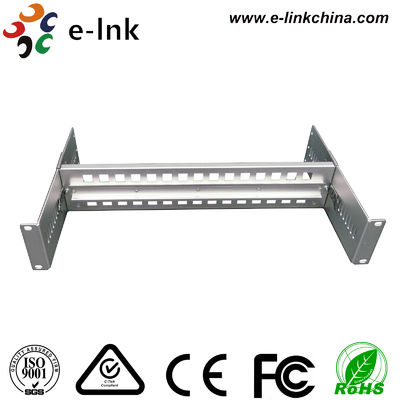

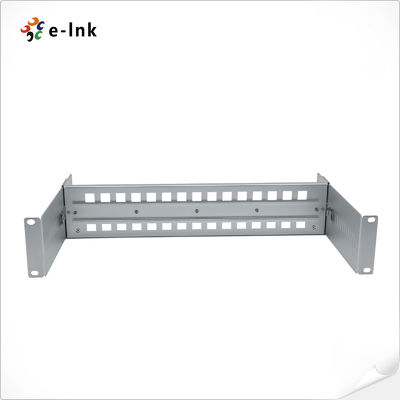

19" Rack Mount DIN Rail Mount Bracket for DIN-Rail Media Converter & Ethernet PoE Switch

19" Rack Mount DIN Rail Mount Bracket for DIN-Rail Media Converter & Ethernet PoE Switch

Model: LNK-DR190 Series

Overview

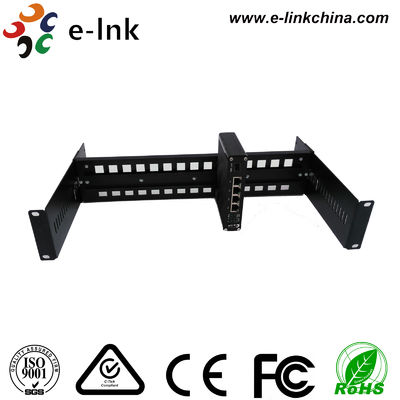

The DIN-rail Rack Mount Hardware is installed in a standard 19” rack cabinet to allow DIN-Rail mounted equipment to be rack mounted. E-link DIN-rail Media Converters, DIN-Rail Ethernet PoE Switches and DIN-rail Power Supplies can be suitable for this Rack Mount Hardware.

Features

• DIN-Rail devices inside a standard 19" rack or cabinet
• Unique depth adjustment feature to fit equipment in any size
• One standard 35mm (1.38") DIN-Rail track included
• User-friendly design

Specifications

Mechanical

Material

• Aluminum

Dimensions

• 482.6mm x 92.2mm x 250mm (11.22") ( W x H x D )

Installation:

The Rack LNK-DR190 is installed in a standard 19” rack cabinet to allow DIN-Rail mounted equipment to be rack mounted. This quick guide shows you how to assemble the Rack.

Assembling procedures are listed below:

1. Use screwdriver to fasten the Metal Shrapnel(3) with M3x6 Screws (4) to the Rackmount DIN-Rail Chassis (1) on the right side and left side;
2. Slide the Rackmount Chassis Holders (2) into the guide rails on two sides of the Rackmount DIN-Rail Chassis (1) and adjust the Rackmount Chassis Holders (2) to appropriate position.
3. Push backward or pull forward the Rackmount Chassis Holders (2) along the guide rails on two sides of the Rackmount DIN-Rail Chassis (1) to adjust the depth of the Rack and offer flexible space for fitting in DIN-rail mountable equipment. Please make sure the Rackmount Chassis Holders (2) and the Rackmount DIN-Rail Chassis (1) are securely assembled.
4. Slide the Rack into the standard 19” rack cabinet. Then use screwdriver and four screws to attach the Rack to the standard 19” rack cabinet.
