Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4K HDMI 2.0 KVM USB Fiber Extender | Compliance: | HDMI 2.0 And HDCP 2.2 |
|---|---|---|---|
| Video Connector: | Female HDMI Type A | Fiber Type: | Single-mode Or Multimode |
| Wavelength: | Single-mode 1310nm, Multimode 850nm | Transmission Distance: | Up To 10KM |
| Power Supply: | 5VDC Power Adapter | Warranty: | 1 Year |
| Dimension (LxWxH): | 163 X 86 X 24(mm) | Gross Weight: | 1.471KG |
| High Light: | HDMI 2.0 Fiber Optic Extender,Single Mode Fiber Optic Extender,10KM HDMI Over Fiber Optic Extender |
||

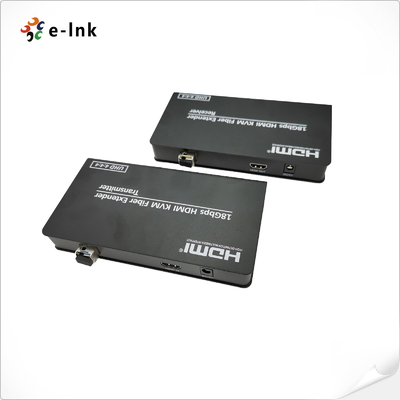

4K HDMI 2.0 KVM USB over Fiber Optic Extender Single Mode Fiber 10KM
4K HDMI KVM Fiber Extender Advantages
►Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
►Support keyboard and mouse signal transmission
►Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
►Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

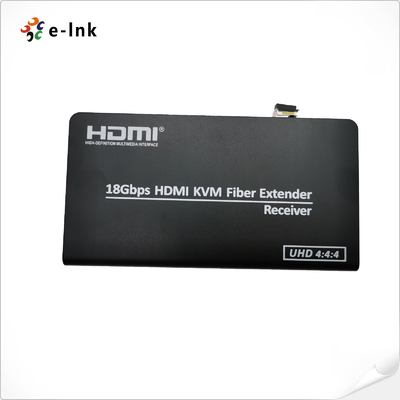

►Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
4K HDMI KVM USB Fiber Transmitter Receiver Technical Indexes
|
Video |
Standards |
HDMI 2.0 and HDCP 2.2 |
|
Maximum pixel clock |
600MHz |
|
|
Maximum data rate |
18Gbps |
|
|
Resolution range |
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode or Multimode |
|
|
Wavelength |
Single-mode 1310nm, Multimode 850nm |
|
|
Interface bandwidth |
18Gbps |
|
|
Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
|
Other |
Power adapter |
input AC (50HZ, 60HZ) 100V-240V Output 5VDC/1A |
|
Power consumption |
HDMI Sender:3W HDMI receiver:3W |
4K HDMI KVM USB Fiber Converter Overview
HDMI extender over fiber is a device transmitting HD audio and video signal via Single Mode Fiber Cable. It transmits your HD display with the high resolutions up to 10km away from your HDMI or DVD source by using one fiber cable. At the same time, it’s also convenient to transmit HDMI audio and video signal by point-to-point mode.
4K HDMI 2.0 Video Over Fiber Extender Ordering Information
|
Model |
Description |
|
LNK-HF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
|
LNK-HF201KM-10 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
