Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4K 30Hz HDMI 2.0 Fiber Transmitter & Receiver | Compatibility: | HDMI 2.0 |
|---|---|---|---|
| Fiber Cable: | OM4 Multi Mode | Fiber Type: | Single Fiber LC |
| Transmission Rate: | 18Gbps | Website Specifications: | Color Space 444, 420, 400 |
| EDID: | Support | HDCP: | Support |
| CEC: | Support | Weight: | 0.1 Kg/pair |
| High Light: | HDMI 2.0 Fiber Converter,OM4 Multi Mode Fiber Converter |
||
4K HDMI 2.0 Fiber Converter OM4 Multi Mode Transmitter & Receiver 300 Meters
HDMI Over Fiber Extender Advantages
►Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)
►No Settings or Adjustments Necessary
►Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber
►Supports up to 300m Transmission Distance with OM4 multimode fiber
►The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
►Support EDID, HDCP, CEC transparent transmission
HDMI Video Fiber Transmitter Receiver 4K 30Hz Technical Indexes
|
Type of Extender |
Mini 4K/60Hz HDMI2.0 Fiber Extender over Single-Core Multimode |
|
Video Support |
4K@60Hz/4K@30Hz/1080p/1080i/720p |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
EDID |
Support |
|
HDCP |
Support |
|
CEC |
Support |
|
Fiber Connector |
1 x LC Connector |
|
Transmission Rate |
18Gbps(6Gbps/CH) |
|
Transmission Distance |
OM4 Multi Mode, up to 984ft (300M) |
|
Operating Temperature |
-40°C to + 70°C |
|
Storage Temperature |
-20°C to + 85°C |
|
Humidity |
to 90% RH (non-condensing) |
|
Safety Approvals |
CE, RoHS, FCC |
|
Dimension (WxDxH) |
2.24 x 0.6 x 0.55 in (57x16x14mm) |
|
Weight |
0.1 kg / 0.22 lb |
|
Operation Voltage |
5VDC |
|
Operation Current |
TX:150mA |
|
Power Consumption |
TX: <800mW; RX: <400mW |
4K HDMI 2.0 To Fiber Transceivers Overview

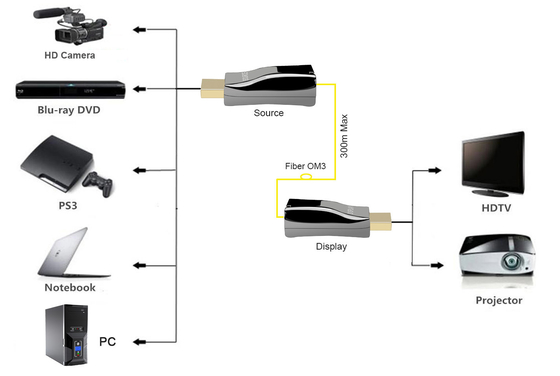

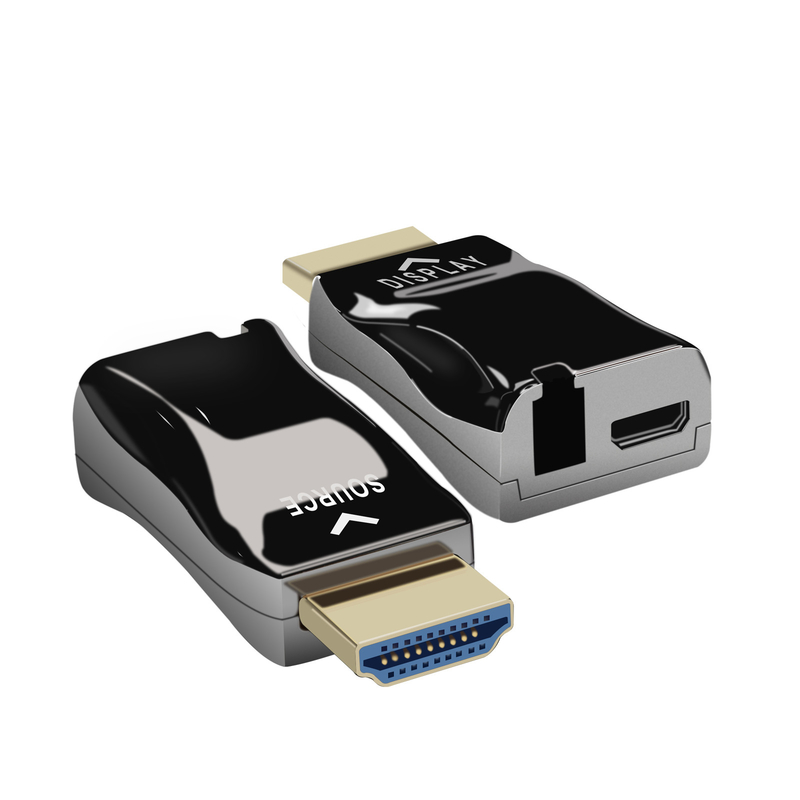

The LNK-108M is a mini 4K/60Hz HDMI2.0 single core MM compact fiber optic extender that can be directly inserted into the device. Use this extremely compact device to expand your 4K video source to 984 feet/300 meters through fiber optics, achieving the display you want. This package can also promote secure data, while RFI/EMI emissions are negligible or video quality is lost due to the absence of copper conductors. This product is an ideal choice for large screen displays, conference systems, and home entertainment. This device has anti-interference ability to ensure signal stability.
4K HDMI Video Fiber Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-108M |
Mini 4K/60Hz HDMI2.0 over Fiber Extender , OM4 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
