Product Details:
Payment & Shipping Terms:
|
Product Name: | 4K 30Hz HDMI 1.4 Video Fiber Extender | Compatibility: | HDMI 1.4, HDCP 1.2 |
---|---|---|---|
Transmission Mode: | Multi-mode Single Fiber | Fiber Cable: | OM3 Multi Mode, Up To 984ft (300M) |
Power Supply: | 5VDC USB Power Input | Video Resolution: | Up To 4K@30Hz |
Transmission Rate: | Up To 10.2Gbps | Dimension: | 57x16x14mm (WxDxH) |
Weight: | 0.1 Kg | Operating Temperature: | -20°C To + 70°C |
High Light: | HDMI 1.4 Video Over Fiber Extender,Single Core Video Over Fiber Extender |

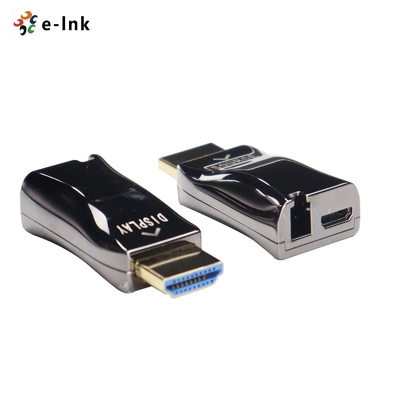

4K 30Hz HDMI 1.4 Video over Fiber Extender Single Core Multi-mode LC Connector
HDMI 1.4 Video Over Fiber Extender Advantages
► Supports HDMI videos with resolutions up to 4Kx2K
► Using OM3 multimode fiber to support transmission distances up to 300m

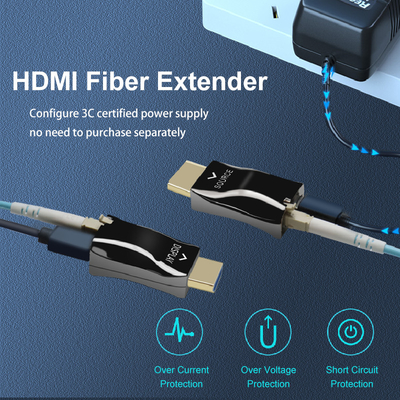

► Integrated USB connector for power supply, Dual power supply (HDMI 5V and USB)
► 850nm VCSEL and PIN photodetectors
► Using small, reliable LC optical connectors
4K 30Hz HDMI Fiber Transmitter Receiver Technical Indexes
Type of Extender | Mini 4K/30Hz HDMI over Fiber Extender Single-Core Multimode |
Signal Support | HDMI 1.4 HDMI format standard |
Video Support | 4K@30Hz/1080p/1080i/720p |
Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Website Specifications | Color space 444, 420, 400 |
Fiber Connector | Simplex LC |
Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
Transmission Distance | OM3 Multi Mode, up to 984ft (300M) |
Humidity | to 90% RH (non-condensing) |
Safety Approvals | CE, RoHS, FCC |

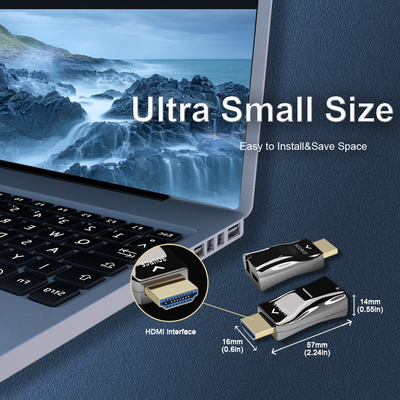

Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
Weight | 0.1 kg / 0.22 lb |
Operation Voltage | 5VDC |
Operation Current | TX+RX: 75mA |
Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Note | The module does not support HDCP and EDID transparent transmission |
Mini 4K HDMI To Fiber Converter Overview
The E-link LNK-107M HDMI optical transmitter and receiver are designed to send 1 channel of 1.4 compliant HDMI Video with embedded audio over one optical fiber. The 4K HDMI optical transceiver supports transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, for distances up to 300 meters, at a resolution of 4Kx2K.
Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. Receiver converts the serial data back to an HDMI signal.
4K 30Hz HDMI Video Over Fiber Transmitter Receiver Ordering Information
Model | Description |
LNK-107M | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input, including Power Adapter |
Note:
1. Please use OM3 Fiber for the device and the Connector is Simplex LC.
2. The Max distance is 300 meters, it maybe shorter according to optical attenuation.
3. The Transmitter can be used without power supply if the HDMI source can offer power, power supply is
recommended for stability.
4. Power adapter is not included. You can use 5V universal USB power supply or the USB port of PC.
5. If any problems, please contact our Service&Support team
