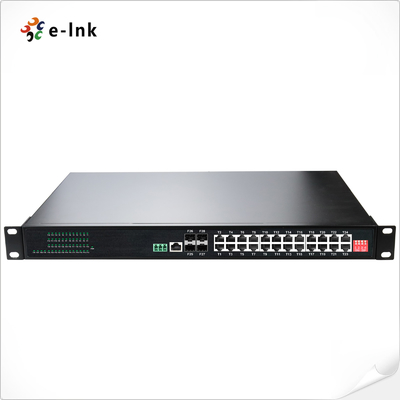

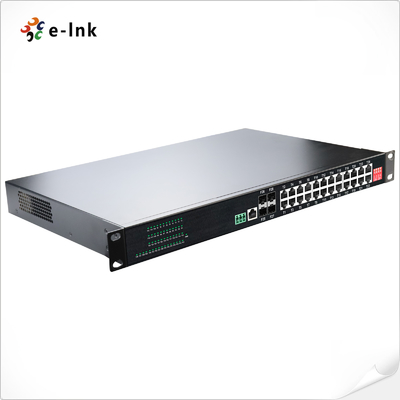

Rackmount Industrial L2+ Managed Switch 24 Port 1000T 802.3at PoE + 4 Port 1000X SFP

Overview

ETH-IMC2424MP Series is the L2+ managed rackmount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened

Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features

• Support 24x10/100/1000Base-T + 4x1000Base-X SFP + 1xRS485
• 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
• IEEE802.3af/at compliant
• DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
• Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
• 10K Bytes Jumbo Frame
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IP40 Aluminum Case
• Supports 1U 19” Rackmount installation
• -40°C to 80°C (-40°F to 176°F) operating temperature
