Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 2x 1000Base-X SFP |
|---|---|---|---|
| Power Consumption: | 240W Max | Mounting Options: | DIN-Rail Mount |
| One-Key Vlan: | Support | Input Power: | 48~57VDC, Redundant Power (4-pin Terminal Block) |
| High Light: | 8 Port Industrial Ethernet PoE Switch,WEB Management Ethernet PoE Switch |
||

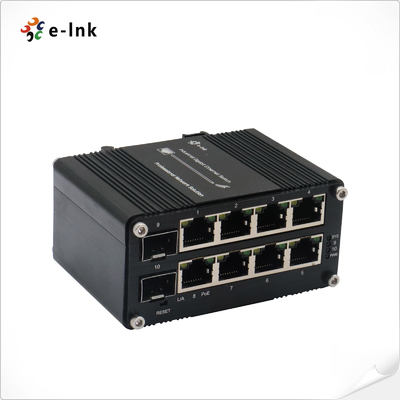

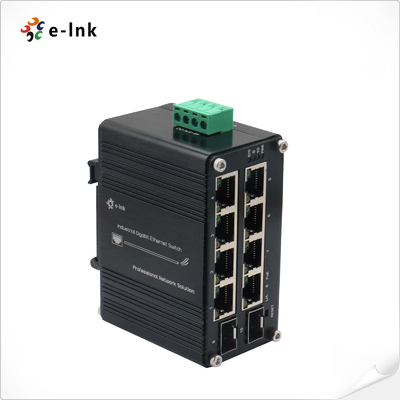

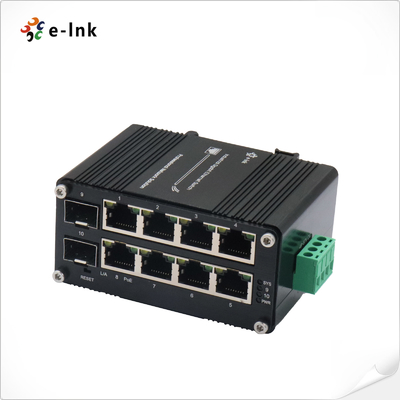

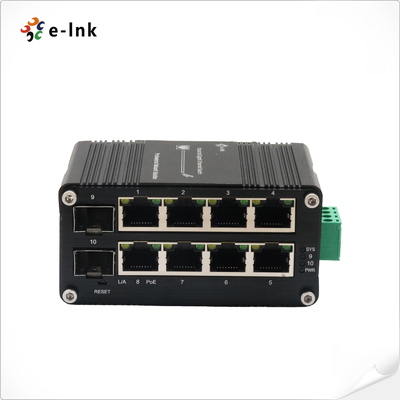

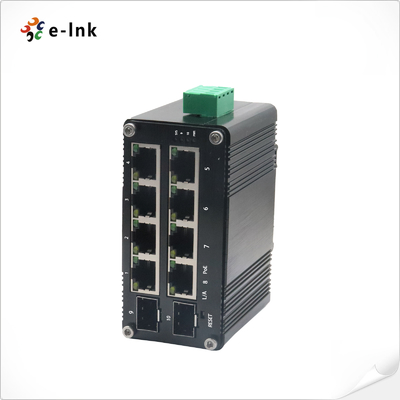

Industrial Ethernet PoE Switch L2+ 8-Port 10/100/1000T 802.3at PoE +2-Port 100/1000X SFP Managed Ethernet Switch
Industrial Ethernet PoE Switch Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports 802.3x Flow Control
Industrial Ethernet PoE Switch Technical Indexes
| Software Features | |
| Redundancy Protocols | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1/V2/V3 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
Industrial Ethernet PoE Switch Overview
LNK-IMC208SGP-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC208SGP-SFP | Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page |
| SFP module is to be purchased separately. | |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| Power Supply is to be purchased separately. |
