E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Managed Industrial Ethernet Switch | Management Function: | WEB |
|---|---|---|---|
| Fiber Port: | 2-Port 100/1000Base-X SFP | RJ45 Port: | 8-Port 10/100/1000BASE-TX Ethernet |
| PoE Budget: | Up To 240-watt | Input Power: | 48~57VDC |
| High Light: | Industrial Managed PoE Switch,WEB Managed PoE Switch |
||

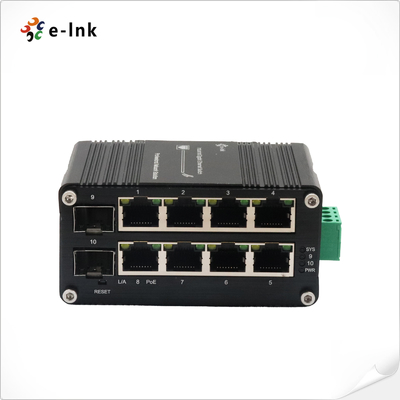

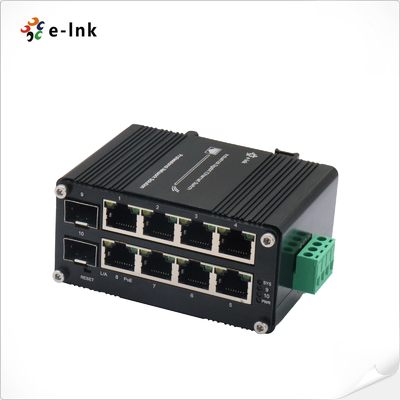

Mini Industrial Managed PoE Switch 8-Port 10/100/1000T 802.3at To 2-Port 100/1000X SFP
Managed PoE Switch 8-Ports Advantages
►Supports WEB Management
►Supports IEEE 802.3at PoE+ (30W per port)
►Redundant Power Inputs
►Support IEEE 802.3D/W/S standard STP/RSTP protocol
8-Port PoE Switch with 2-Ports SFP Technical Indexes
|
Connector: |
8 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-X SFP |
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |
48~57VDC, Redundant Power (4-pin Terminal Block) |
|
Power Consumption: |
5W Max.(PoE in Use<240W) |
|
Dimensions (WxDxH): |
95 x 88 x 46 mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
Din Rail Managed PoE Switch 30W Overview
The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial Ethernet Switch With 8-port PoE Ordering Information
|
Model |
Description |
|
LNK-IMC208SGP-SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
