Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 4 X 1000Base-X SFP 2 X 10G Base-SR/LR SFP+ |
|---|---|---|---|
| Power Pin Assignment: | 4/5(+), 7/8(-) | PoE Budget: | Up To 240-watt PoE Budget |
| 250m PoE Network: | Support | PoE Reset: | Support |
| High Light: | Managed Layer 2+ Ethernet Switch,8 x RJ45 Layer 2+ Ethernet Switch |
||

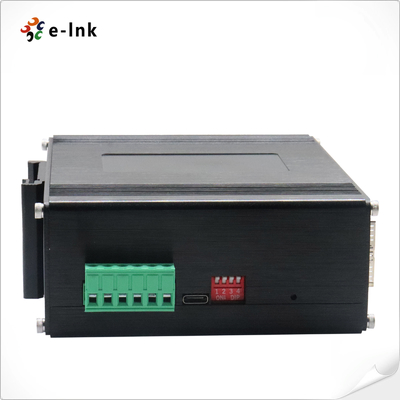

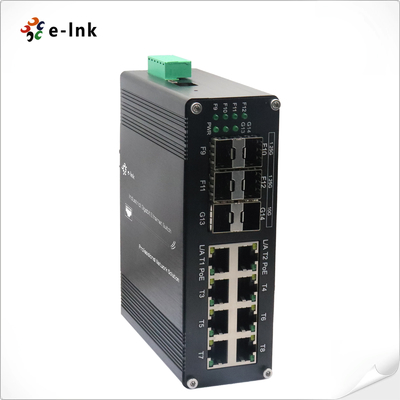

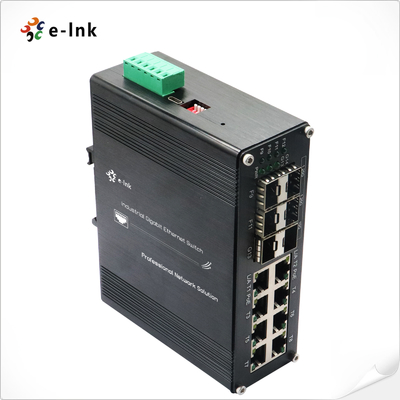

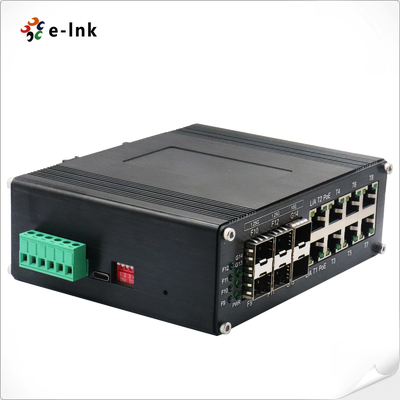

Industrial Ethernet PoE Switch L2+ 8-Port 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial Ethernet PoE Switch Advantages
► Support 8x10/100/1000Base-T 802.3at PoE + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
Industrial Ethernet PoE Switch Technical Indexes
| Interface | ||||
| Connector: | 8 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data +, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 240-watt PoE budget | |||
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max.(PoE in Use<240W) | |||
Industrial Ethernet PoE Switch Overview
ETH-IMC2408MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch
Ordering Information
| Model | Description | |
| ETH-IMC2408MP |
|
|
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page | |
| ► SFP module is to be purchased separately. |
