Product Details:
Payment & Shipping Terms:
|
| Connector: | 24 X RJ45 | Optical Port: | 4 X 1000Base-X SFP |
|---|---|---|---|
| Power Pin Assignment: | 4/5(+), 7/8(-) | PoE Budget: | Up To 720-watt PoE Budget |
| 250m PoE Network: | Support | PoE Reset: | Support |
| High Light: | Rackmount Layer 2+ PoE Switch,Industrial Layer 2+ PoE Switch |
||

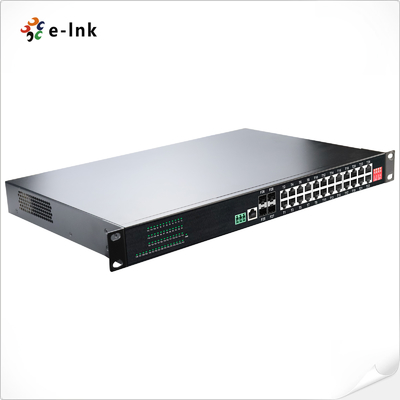

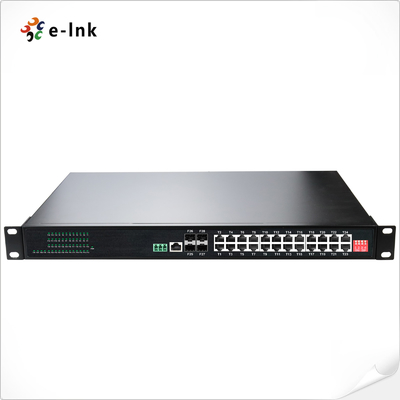

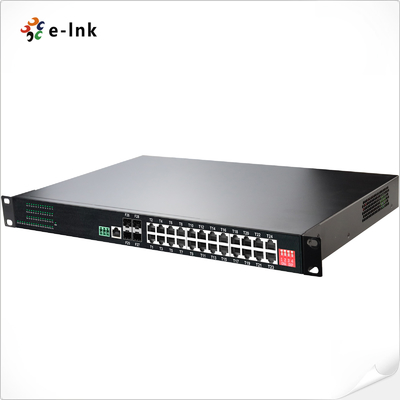

Industrial Ethernet PoE Switch Industrial L2+ Rackmount 24-Port 802.3at PoE + 4-Port SFP Managed Ethernet Switch
Industrial Ethernet PoE Switch Advantages
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
Industrial Ethernet PoE Switch Technical Indexes
| Interface | ||||
| Connector: | 24 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data +, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 720-watt PoE budget | |||
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max.(PoE in Use<720W) | |||
Industrial Ethernet PoE Switch Overview
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| ETH-IMC2424MP | Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
