Product Details:
Payment & Shipping Terms:
|
| Keywords: | Industrial PoE Switch 4-Port PoE | Voltage Range: | DC48V~57V |
|---|---|---|---|
| Power Distance: | 250m 20W | Ethernet Port: | 4-Port 10/100/1000BASE-TX RJ45 |
| Fiber Port: | 2-Port 10/100/1000BASE-FX SFP | Installation: | DIN-Rail Or Wall Mounts |
| High Light: | 250m Fiber PoE Switch,4 RJ45 Fiber PoE Switch,2 SFP Industrial PoE Switch |
||

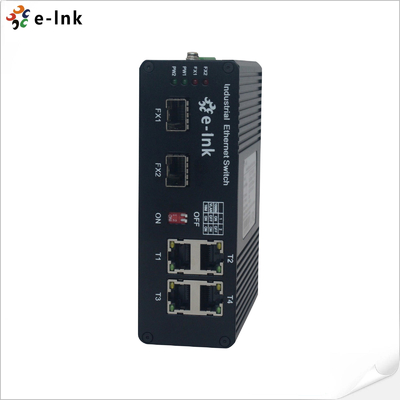

Industrial 4-Port 10 100 1000BASE-T To 2-Port 1000BASE-SFP 250m Fiber PoE Switch
4-Port 250m PoE Switch Advantages
►Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
►It will give the speed of 10Mbps at 250meter when connect IP cameras
►4 10/100/1000Base-TX + 2 1000Base-FX
►10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

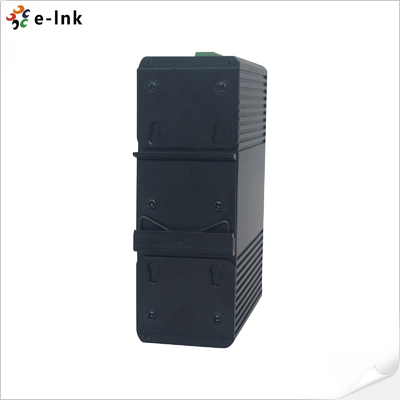

►Supports Wall-mount and DIN-Rail installation
Unmanaged Network Switch Technical Indexes
| Power | Power Supply | Industrial Power Adaptor | |||
| Voltage range | DC48V~57V | ||||
| Consumption | ＜5W , PoE output < 120W | ||||
| Ethernet | Ethernet Port |
1～4 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
| Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
| Cable | Cat6/7 network cable | ||||
|
Status |
Power | Power1, Power2 | |||
| Optical Port | FX1, FX2 | ||||
| Ethernet Port | 1～4 ports : green light indicates network status, yellow light indicates PoE status | ||||
| Working Environment | Working Temperature | -40℃~75℃ | |||
| Storage Temperature | -40℃~85℃ | ||||
|
Humidity (Non-condensing) |
0~95% | ||||
| Power/Distance 54V |
Distance | 100m | 150m | 200m | 250m |
| Power | 26W | 24W | 23W | 20W | |
Din Rail 1000Mbps Gigabit Ethernet Switch Overview
LNK-GYT204GP-SFP Series is 250m Industrial PoE Switch with 4 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.
Copper to Fiber PoE Switch Ordering Information
| Model | Description |
| LNK-GYT204GP-SFP | 4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
