| Keywords: | Armored FC Fiber Patch Cable | Fiber Type: | OS2 9/125μm G.652D |
|---|---|---|---|
| Fiber Port: | 6 Core | Connector: | FC To FC |
| Length: | 100 Meters | Operating Temperature: | -40℃to +85℃ |
| High Light: | OS2 Armored Fiber Patch Cable,Single Mode Armored Fiber Patch Cable,FC To FC Armored Fiber Patch Cord |
||

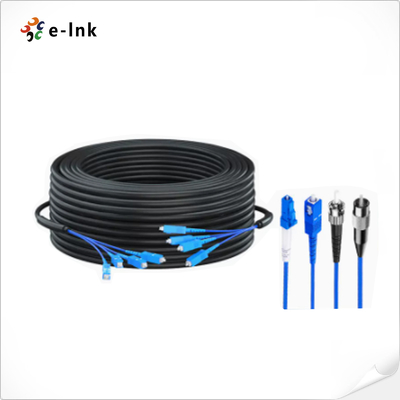

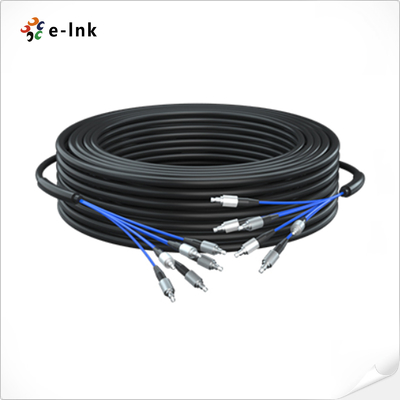

OS2 9/125μM 6 Core Single Mode Armored Fiber Patch Cable 100 Meters FC To FC Connector
Outdoor Armored Cable Advantages
►Outdoor Armored Cable, 9/125, 4 Core, Single mode
►Ceramic connectors ensure low signal loss, and high reliability
►Low smoke, zero halogen and flame retardant sheath
►Adapt to harsh environments and man-made damage
OS2 6-Core Fiber Patch Cable Technical Indexes
| Specifications | ||
| Fiber Type | OS2 9/125μm G.652D | |
| Fiber Core | 6 Core | |
| Buffered Fiber | ||
| Material | PVC | |
| Dimension | 850±50μm | |
| Armor Tube | ||
| Dimension | 2.8±0.1 mm | |
| Material | SUS 204 | |
| Strength Member | ||
| Material | Polyester yarn | |
| Jacket | ||
| Dimension | 5.0±0.2mm | |
| Material | LSZH | |
| Color | Black | |
| Mechanical and Environmental Characteristics | ||
| Items | Unit | Specifications |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Working Environment | ||
| Operating Temperature | -40℃to +85℃ | |
| Storage Temperature | -40℃to +85℃ | |
Single Mode FC Fiber Patch Cable Overview
E-link Armored Fiber Patch Cable is considered ruggedized Fiber Optics. The transmission speeds are equal to common fiber optic cable, but the optical cable is equipped with a shield that is encased by a protective braid, which increases the durability. With the incorporation of the 2-12Core’s light weight design and additional connector options, it is a perfect fit for any high-speed system that needs to factor durability into their communication equation.
Ruggedized Fiber Optical Cable Ordering Information
| Model | Description |
| LNK-2OFC-FC-FC-50 | 50 Meters FC to FC Outdoor Armored 2-Core SM Fiber Patch Cable |
| LNK-2OFC-FC-FC-100 | 100 Meters FC to FC Outdoor Armored 2-Core SM Fiber Patch Cable |
| LNK-4OFC-FC-FC-50 | 50 Meters FC to FC Outdoor Armored 4-Core SM Fiber Patch Cable |
| LNK-4OFC-FC-FC-100 | 100 Meters FC to FC Outdoor Armored 4-Core SM Fiber Patch Cable |
| LNK-6OFC-FC-FC-50 | 50 Meters FC to FC Outdoor Armored 6-Core SM Fiber Patch Cable |
| LNK-6OFC-FC-FC-100 | 100 Meters FC to FC Outdoor Armored 6-Core SM Fiber Patch Cable |
| LNK-8OFC-FC-FC-50 | 50 Meters FC to FC Outdoor Armored 8-Core SM Fiber Patch Cable |
| LNK-8OFC-FC-FC-100 | 100 Meters FC to FC Outdoor Armored 8-Core SM Fiber Patch Cable |
| LNK-12OFC-FC-FC-50 | 50 Meters FC to FC Outdoor Armored 12-Core SM Fiber Patch Cable |
| LNK-12OFC-FC-FC-100 | 100 Meters FC to FC Outdoor Armored 12-Core SM Fiber Patch Cable |
