Product Details:
Payment & Shipping Terms:
|
| Keywords: | Fiber Optical Cable | Input Voltage: | 5~20V |
|---|---|---|---|
| Data Rate: | 10Gbps | Fiber Type: | 2-core MMF |
| Cable Jacket: | TPE/85A | Operating Temperature: | 0℃ To +50℃ |
| High Light: | USB 3.1 AOC Active Optical Cable,MMF AOC Active Optical Cable,TPE AOC Cable |
||

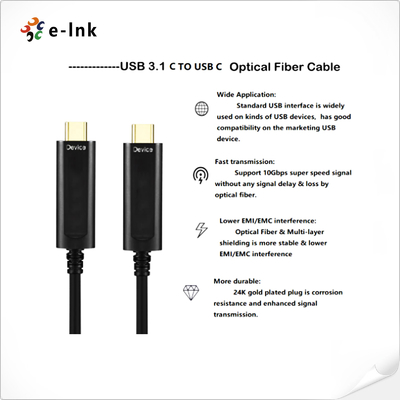

USB 3.1 Type C to C AOC Active Optical Cable 2-Core MMF
AOC Fiber Cable Advantages
► Support USB 3.1 Gen 2 and full bandwidth reach up to 10Gbps
► Supports both USB 2.0 and 3.1 in same cable up to 40 meters
► Supports up to 100m (300ft.) cable length
► Low EMI (electromagnetic interference) protection.
► Standard operating temp: 0 to 50C
Fiber Optical Cable Technical Indexes
| Protocol Specification | USB 3.1, USB 3.0, USB 2.0 (copper) |
| Transmission Data Rate | 10Gbps |
| Power Supply | Low power consumption, no external power supply required |
| Cable Length Options | 1/2/5m |
| Max. Cable Length | 5m |
| Cable Jacket | TPE/85A |
| Color | Black |
| Cable Diameter | 4.3mm±0.15mm |
| Weight | Depends on length |
| Min. Bending Radius | 12mm |
| Max. Tensile Load | 221N |
| Operating Temperature | 0℃ to +50℃ |
| Storage Temperature | -40℃to +80℃ |
| Input Voltage | 5~20V |
| Power Supply Capability | 3A |
| Power Consumption | ≤ 500mW |
| Package List | Anti-static bag, cable tie, transmission line, instruction manual |
|
Attention: During use, be careful to avoid excessive bending and breaking the fiber. For details, please refer to the bending radius. |
|
USB 3.1 Type C Optical Cable Overview
E-link USB 3.1 fiber optical cable Under the help of optical fiber design, cable OD only 4.8mm, easy for installation, support plug & play, no need external power supply. And has lower EMI interrupt, and without signal loss at high-speed signal transmission. Different USB devices with comprehensive compatibility testing before shipment, has perfect compatible with most USB device.

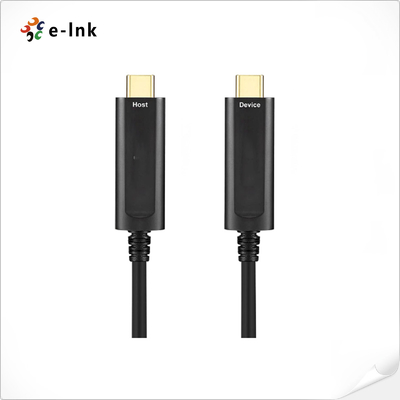

E-link USB 3.1 Active Optical Cable one side adopt standard USB type C male at Host (PC) side, and USB 3.1 type C at Device side, this can allow users can use E-link cable at USB type C interface device, it saves converting, space saving, it is most convenient for the application.
USB 3.1 Active Optical Cable Ordering Information
| Model | Description |
| LNK-U31-AOC-5 | USB3.1 Type C to C Fiber Optical Cable, 5 Meters |
| LNK-U31-AOC-10 | USB3.1 Type C to C Fiber Optical Cable, 10 Meters |
| LNK-U31-AOC-15 | USB3.1 Type C to C Fiber Optical Cable, 15 Meters |
| LNK-U31-AOC-20 | USB3.1 Type C to C Fiber Optical Cable, 20 Meters |
| LNK-U31-AOC-30 | USB3.1 Type C to C Fiber Optical Cable, 30 Meters |
