E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
Product Details:
Payment & Shipping Terms:
|
Keywords: | Commercial SFP Optical Transceiver | Application: | 400GBASE-ER8 |
---|---|---|---|
Connector: | Duplex LC Connector | Distance: | 40KM |
Wavelength: | 1310nm | Temperature: | 0°C To 70°C |
High Light: | 400GBASE-ER8 SFP Optic Module,SFP Optic Module 40KM,Duplex LC qsfp optical module |

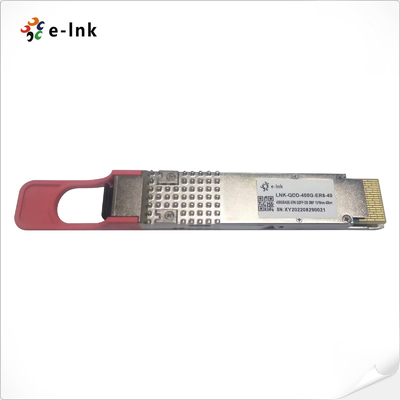

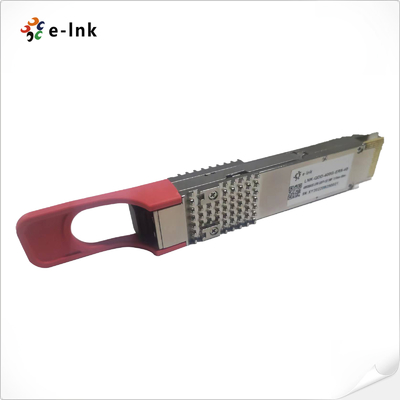

SFP Optic Module 400GBASE-ER8 QSFP-DD 1310nm 40KM Transceiver Duplex LC Connector
Optical Transceiver Module Advantages
► Compliant with IEEE std 802.3cnTM-2019:
- 400GBASE-ER8 optical interface
- 400GAUI-8 electrical interface
► Compliant with QSFP-DD MSA HW Rev 5.1 with duplex LC connector
► Compliant with QSFP-DD CMIS Rev 4.0
► Class 1/1M Laser
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Operating Case Temperature |
TOPR |
0 |
- |
70 |
ºC |
|
Power Supply Voltage |
VCC |
3.135 |
3.3 |
3.465 |
V |
|
Instantaneous peak current at hot plug |
ICC_IP |
- |
- |
5600 |
mA |
|
Sustained peak current at hot plug |
ICC_SP |
- |
- |
4620 |
mA |
|
Maximum Power Dissipation |
PD |
- |
- |
14 |
W |
|
Maximum Power Dissipation, Low Power Mode |
PDLP |
- |
- |
1.5 |
W |
|
Signalling Speed per Lane |
DRL |
- |
26.5625 |
- |
GBd |
|
Control Input Voltage High |
VIH |
VCC*0.7 |
- |
VCC+0.3 |
V |
|
Control Input Voltage Low |
VIL |
-0.3 |
- |
VCC*0.3 |
V |
|
Two Wire Serial Interface Clock Rate |
- |
- |
- |
400 |
kHz |
|
Power Supply Noise |
- |
- |
- |
66 |
mVpp |
|
Rx Differential Data Output Load |
- |
- |
100 |
- |
Ohm |
|
Operating Distance |
- |
0.002 |
- |
40 |
km |
1 |
Digital Diagnostics
Parameter |
Range |
Accuracy |
Unit |
Calibration |
Temperature |
0 to 70 |
±3 |
ºC |
Internal |
Voltage |
0 to VCC |
0.1 |
V |
Internal |
Tx Bias Current (Each Lane) |
0 to 100 |
10% |
mA |
Internal |
Tx Output Power (Each Lane) |
-0.6 to +5.6 |
±3 |
dB |
Internal |
Rx Receive Power (Each Lane) |
-18.6 to -4.4 |
±3 |
dB |
Internal |
Ordering Information
Part No. |
Application |
Data Rate |
Laser Source |
Distance |
LNK-QDD-400G-ER8-40 |
400GBASE-ER8 |
400GB Ethernet |
EML |
40km |
