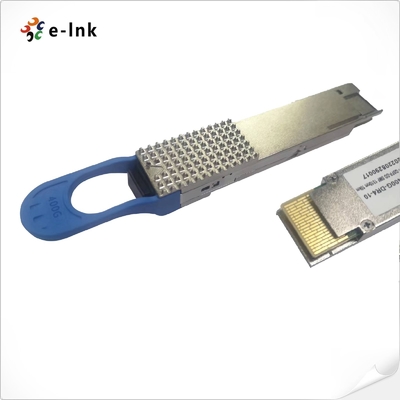

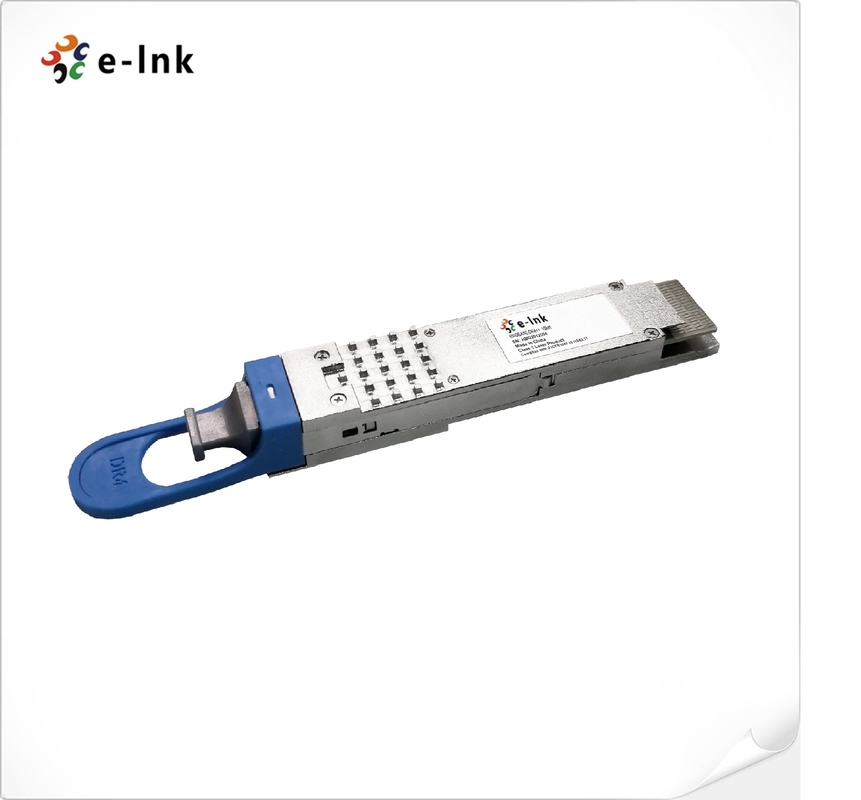

SFP Optic Module 400GBASE-DR4 QSFP-DD 1310nm 10KM Transceiver MPO12 Connector
Optical Transceiver Module Advantages
► Complies with EU Directive 2011/65/EU (RoHS compliant)
► Maximum power consumption 10W
► Case operating temperature 0°C to 70°C
► Two wire serial Interface with digital diagnostic monitoring
► Class 1 Laser
Electrical Specification High Speed Signal (compliant with IEEE 802.3 400GAUI-8)
|
Receiver (Module Output) |
||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| AC common-mode output Voltage (RMS) | - | - | 17.5 | mV | ||
| Differential output Voltage | - | - | 900 | mV | ||
| Near-end Eye height, differential | 70 | - | - | mV | ||
| Far-end Eye height, differential | 30 | - | - | mV | ||
| Far end pre-cursor ratio | -4.5 | - | 2.5 | % | ||
| Differential Termination Mismatch | - | - | 10 | % | ||
| Transition Time (min, 20% to 80%) | 9.5 | - | - | ps | ||
| DC common mode Voltage | -350 | - | 2850 | mV | ||
| Transmitter (Module Input) | ||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Differential pk-pk input Voltage tolerance | 900 | - | - | mV | ||
| Differential termination mismatch | - | - | 10 | % | ||
| Single-ended voltage tolerance range | -0.4 | - | 3.3 | V | ||
| DC common mode Voltage | -350 | - | 2850 | mV | ||
Electrical Specification Low Speed Signal (compliant with QSFP-DD HW Rev 5.1)
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Condition |
|
Module output SCL and SDA |
VOL |
0 |
0.4 |
V |
|
|
Module Input SCL and SDA |
VIL |
-0.3 |
VCC*0.3 |
V |
|
|
VIH |
VCC*0.7 |
VCC+0.5 |
V |
|
|
|
InitMode, ResetL and ModSelL |
VIL |
-0.3 |
0.8 |
V |
|
|
VIH |
2 |
VCC+0.3 |
V |
|
|
|
IntL |
VOL |
0 |
0.4 |
V |
|
|
VOH |
VCC-0.5 |
VCC+0.3 |
V |
Active fiber ports in MPO12 connector on module side
Ordering Information
|
Part No. |
Application |
Data Rate |
Laser Source |
Fiber Type |
|
LNK-QDD-400G-DR4-10 |
400GBASE-DR4 10km |
400GB Ethernet |
EML |
Single Mode Fiber |
