100GBASE-ZR4 Fiber Optical Transceiver QSFP28 1295nm To 1309nm 80KM Duplex LC

Name: 100GBASE-ZR4 Fiber Optical Transceiver QSFP28 1295nm To 1309nm 80KM Duplex LC
Brand: E-link
SKU: LNK-QSFP28-ZR4
Rating: 4.7 (146 reviews)

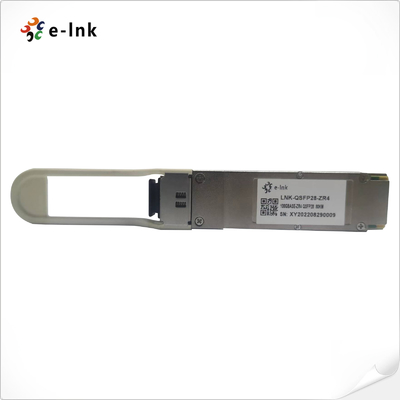

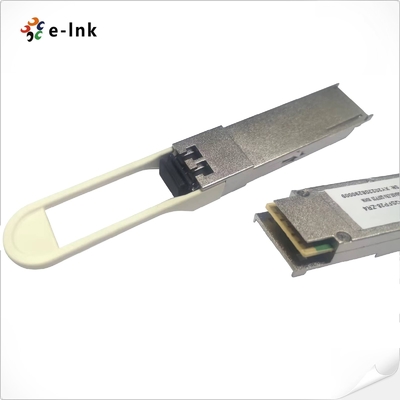

Large Image : 100GBASE-ZR4 Fiber Optical Transceiver QSFP28 1295nm To 1309nm 80KM Duplex LC

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-QSFP28-ZR4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	SFP Fiber Transceiver Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	20000pcs/per month

Contact Now

Detailed Product Description

Keywords:	Fiber Optic Transceiver Module	Data Rate:	100Gb Ethernet
Fiber Type:	Single Mode Fiber	Connector:	Duplex LC Connector
Transmission Distance:	80KM	Operating Temperature:	0-70 ºC
High Light:	ZR4 fiber optical transceiver , 80KM fiber optical transceiver , Duplex LC 100g optical transceivers

Fiber Optic Module 100GBASE-ZR4 QSFP28 1295nm To 1309nm 80KM Transceiver Duplex LC
Optical Fiber Transceiver Advantages

► Compliant with QSFP28 Standard: SFF-8661 Rev 2.5, SFF-8636 Rev 2.10a
► High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm-2015
► 100GBASE-ZR4 point-to-point Ethernet links
► Rx sensitivity of -28dBm with enabled KR4 FEC in host for up to 80km SMF

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Notes
Storage Temperature	TS	-40	85	ºC
Supply Voltage	VCC	-0.5	3.6	V
Relative Humidity (non-condensing)	RH	5	95	%
Data Input Voltage Differential	lVDIP-VDINl	-	1	V
Control Input Voltage	VI	-0.3	VCC+0.5	V
Control Output Current	IO	-20	20	mA

Recommended Operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Operating Case Temperature	TOPR	0	-	70	ºC
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Maximum Power Dissipation	PD	-	-	6	W
Maximum Power Dissipation, Low Power Mode	PDLP	-	-	1.5	W
Aggregate Bit Rate	ABR	-	103.125	-	Gb/s
Data Rate per Lane	DRL	-	25.78	-	Gb/s
Control Input Voltage High	VIH	VCC*0.7	-	VCC+0.3	V
Control Input Voltage Low	VIL	-0.3	-	VCC*0.3	V
Two Wire Serial Interface Clock Rate	-	-	-	400	kHz
