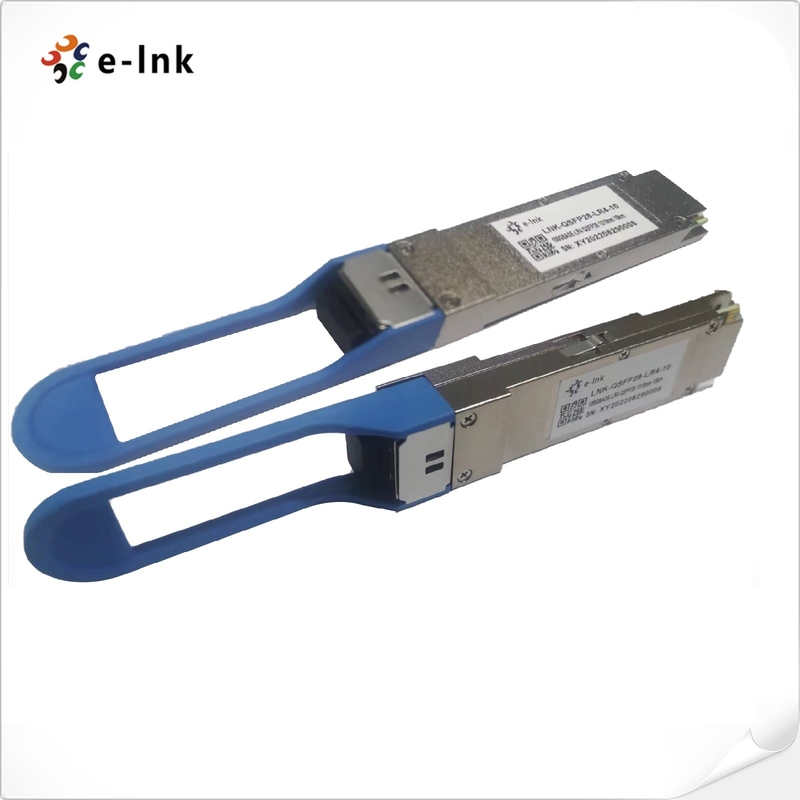

10KM 100G QSFP28 Transceiver 100GBASE-LR4 Single Mode Duplex LC Connector

Name: 10KM 100G QSFP28 Transceiver 100GBASE-LR4 Single Mode Duplex LC Connector
Brand: E-link
SKU: LNK-QSFP28-LR4-10
Rating: 5 (196 reviews)

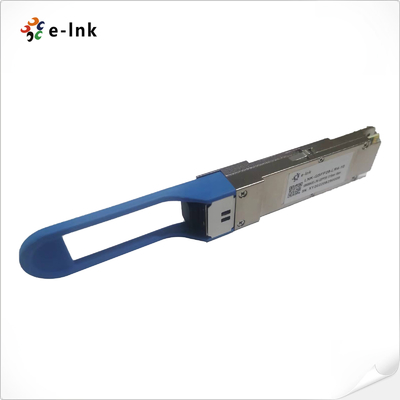

Large Image : 10KM 100G QSFP28 Transceiver 100GBASE-LR4 Single Mode Duplex LC Connector

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-QSFP28-LR4-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	SFP Fiber Transceiver Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	20000pcs/per month

Contact Now

Detailed Product Description

Keywords:	SFP Transceiver Module	Connector:	Duplex LC
Power Supply:	3.3V	Application:	100GBASE-LR4
Support:	Forward Error Correction	Temperature Range:	0°C To 70°C
High Light:	100G QSFP28 Transceiver 10KM , SMF 100G QSFP28 Transceiver , 100GBASE-LR4 SFP transceiver module

Fiber SFP Module 100G 10KM QSFP28 Transceiver Single Mode Duplex LC Connector
100G QSFP Transceiver Advantages
► 4 lanes MUX/DEMUX design

► Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF

► Built-in digital diagnostic functions

► Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

Applications

► Local Area Network (LAN)

► Wide Area Network (WAN)

► Ethernet switches and router applications

Overview

The LNK-QSFP28-LR4-10 is a transceiver module designed for 10km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)

Parameter	Symbol	Min	Typ	Max		Unit		Ref.
Transmitter
Wavelength Assignment	L0	1294.53	1295.56		1296.59		nm
	L1	1299.02	1300.05		1301.09		nm
	L2	1303.54	1304.58		1305.63		nm
	L3	1308.09	1309.14		1310.19		nm
Side-mode Suppression Ratio	SMSR	30	-		-		dB
Total Average Launch Power	PT	-4	-		8.3		dBm
Average Launch Power, each Lane		-4	-		4.5		dBm
Difference in Launch Power between any two Lanes (OMA)		-	-		6.5		dB
Optical Modulation Amplitude, each Lane	OMA	-4			4.5		dBm
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane		-4.8	-				dBm
TDP, each Lane	TDP				2.2		dB
Extinction Ratio	ER	4	-		-		dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Optical Return Loss Tolerance		-	-		20		dB
Average Launch Power OFF Transmitter, each Lane	Poff				-30		dBm
Relative Intensity Noise	Rin				-128		dB/HZ	1
Optical Return Loss Tolerance		-	-		12		dB
Receiver
Damage Threshold	THd	3.3				dBm		1
Average Power at Receiver Input, each Lane	R	-10.6		0		dBm
RSSI Accuracy		-2		2		dB
Receiver Reflectance	Rrx			-26		dB
Receiver Power (OMA), each Lane		-	-	3.5		dBm
LOS De-Assert	LOS_D			-15		dBm
LOS Assert	LOS_A	-25				dBm
LOS Hysteresis	LOS_H	0.5				dB
