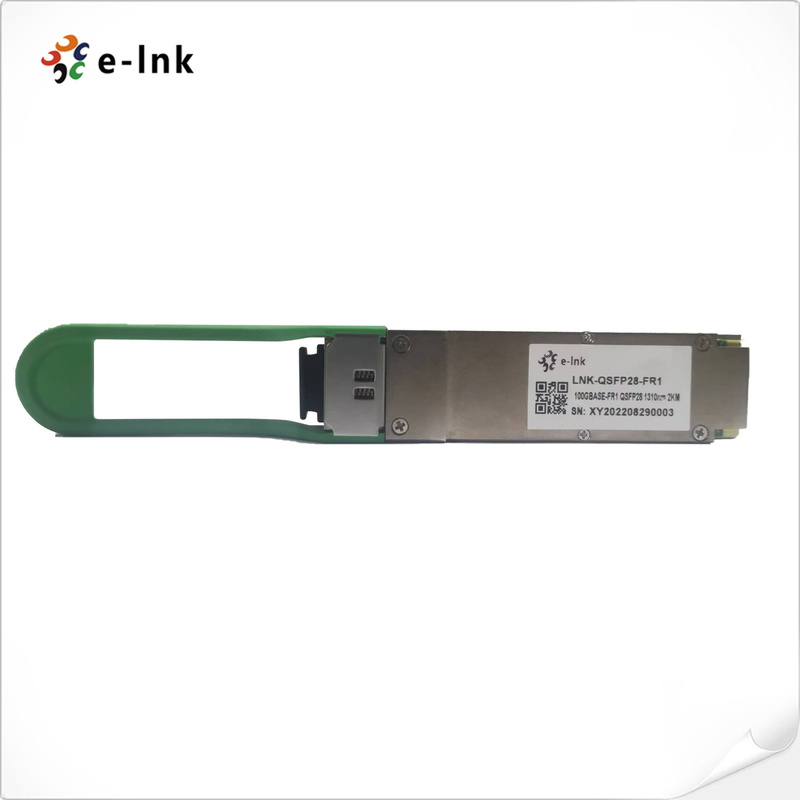

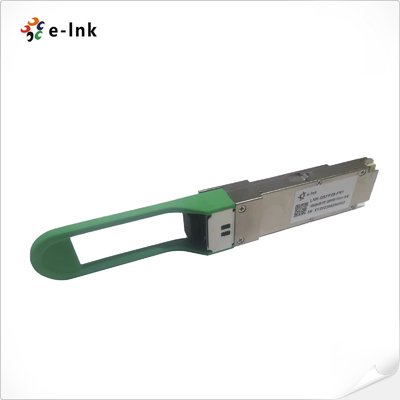

Fiber SFP Module 100GBASE-FR1 QSFP28 1310nm 2KM Transceiver Duplex LC Connector
Optical Transceiver Module Advantages
► Hermetically sealed TO Based design
► Supporting 2km reach of single mode fiber
► Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a
► Compliant with IEEE802.3cu D3.2 100GBASE- FR1
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Max. |
Unit |
Notes |
Storage Temperature |
TS |
-40 |
+85 |
ºC |
|
Supply Voltage |
VCC |
-0.3 |
3.6 |
V |
|
Relative Humidity (non-condensing) |
RH |
5 |
95 |
% |
|
Data Input Voltage – Differential |
lVDIP-VDINl |
- |
1.0 |
V |
|
Control Input Voltage |
VI |
-0.3 |
Vcc+0.3 |
V |
|
Control Output Current |
IO |
-20 |
20 |
mA |
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Operating Case Temperature |
TOPR |
0 |
- |
70 |
ºC |
|
Power Supply Voltage |
VCC |
3.135 |
3.3 |
3.465 |
V |
|
Instantaneous peak current at hot plug |
ICC_IP |
- |
- |
1600 |
mA |
|
Sustained peak current at hot plug |
ICC_SP |
- |
- |
1320 |
mA |
|
Maximum Power Dissipation |
PD |
- |
- |
4 |
W |
|
Maximum Power Dissipation, Low Power Mode |
PDLP |
- |
- |
1.5 |
W |
|
Signalling Rate |
SR |
- |
53.125 |
- |
GBd |
|
Control Input Voltage High |
VIH |
VCC*0.7 |
- |
VCC+0.3 |
V |
|
Control Input Voltage Low |
VIL |
-0.3 |
- |
VCC*0.3 |
V |
|
Two Wire Serial Interface Clock Rate |
- |
- |
- |
400 |
kHz |
Digital Diagnostics
Parameter |
Range |
Accuracy |
Unit |
Calibration |
Temperature |
0 to 70 |
±3 |
ºC |
Internal |
Voltage |
0 to VCC |
±3% |
V |
Internal |
Tx Bias Current |
0 to 100 |
±10% |
mA |
Internal |
Tx Output Power |
-3.1 to +4 |
±3 |
dB |
Internal |
Rx Receive Power |
-7.1 to +4 |
±3 |
dB |
Internal |
Mechanical Diagram
Ordering Information
Part Number |
Application |
Data Rate |
Laser Source |
Fiber Type |
LNK-QSFP28-FR1 |
100GBASE-FR1 |
100GE (53.125 GBd) |
1311nm EML |
SMF |
