40G 10KM QSFP Transceiver Module 1310nm MTP MPO Connector Single Mode

Name: 40G 10KM QSFP Transceiver Module 1310nm MTP MPO Connector Single Mode
Brand: E-link
SKU: LNK-QSFP- LR4M
Rating: 4.9 (191 reviews)

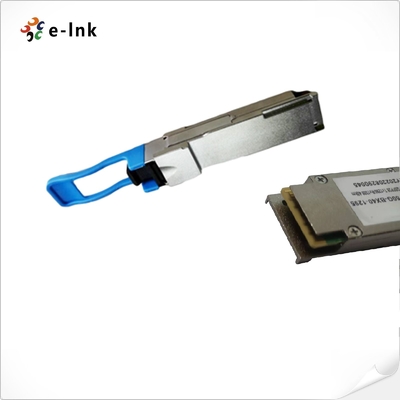

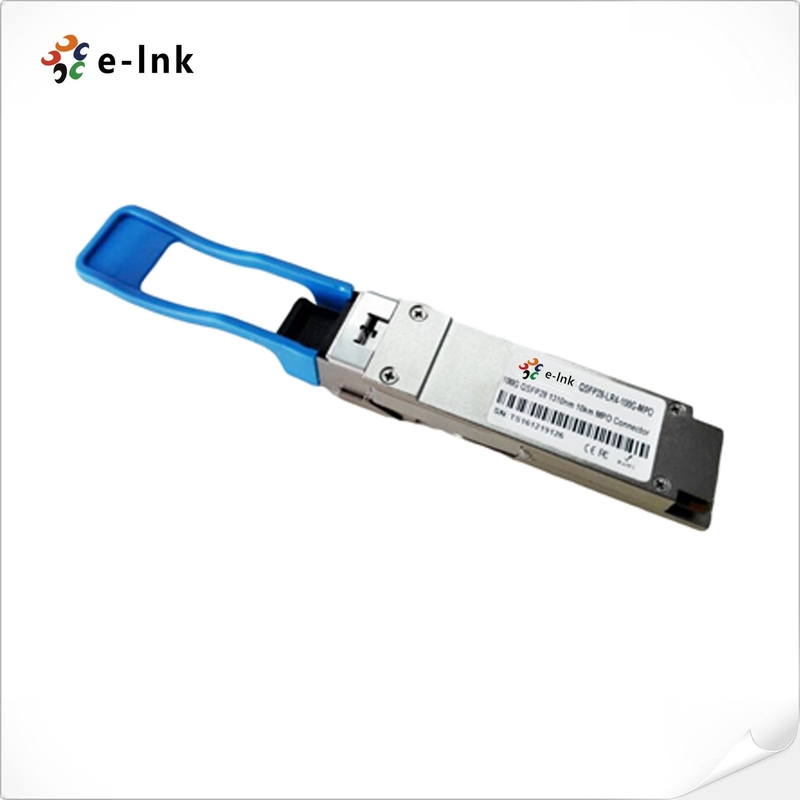

Large Image : 40G 10KM QSFP Transceiver Module 1310nm MTP MPO Connector Single Mode

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE,FCC,RoHs
Model Number:	LNK-QSFP- LR4M

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	SFP Fiber Transceiver Standard Export Package
Delivery Time:	7 Working days
Payment Terms:	Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability:	20000pcs/per month

Contact Now

Detailed Product Description

Keywords:	Optical Transceiver Module	Aggregate Bandwidth:	40Gbps
Connector:	MTP MPO Connector	Wavelength:	1310nm
Transmission Distance:	10KM	Support:	Digital Diagnostic Functions
High Light:	10KM qsfp transceiver module , 1310nm QSFP transceiver module , MTP MPO QSFP transceiver module

Fiber Optic Module 40G 10KM QSFP Transceiver MTP MPO Connector Single Mode
40G QSFP+ Transceiver Advantages
► Up to 11.2Gbps per channel bandwidth

► Aggregate bandwidth of > 40Gbps

► Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

► Compliant with QDR/DDR Infiniband data rates

Fiber Optic Module Applications

► Rack to rack

► Data centers Switches and Routers

► Metro networks

► Switches and Routers

► 40G BASE-LR4-PSM Ethernet Links

Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Wavelength Assignment		1300	1311	1320	nm
Side-mode Suppression Ratio	SMSR	30	-	-	dB
Average Optical Power per Channel		-5	-	+1	dBm
TDP, each Lane	TDP			2.3	dB
Extinction Ratio	ER	3.5	-	-	dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Optical Return Loss Tolerance		-	-	20	dB
Average Launch Power OFF Transmitter, each Lane	Poff			-30	dBm
Relative Intensity Noise	Rin			-128	dB/HZ	1
Optical Return Loss Tolerance		-	-	12	dB
Receiver
Damage Threshold	THd	3.3			dBm	1
Average Power at Receiver Input, each Lane	R	-12.6		0	dBm
Receive Electrical 3 dB upper Cut off Frequency, each Lane				12.3	GHz
RSSI Accuracy		-2		2	dB
Receiver Reflectance	Rrx			-26	dB
Receiver Power (OMA), each Lane		-	-	3.5	dBm
Receive Electrical 3 dB upper Cutoff Frequency, each Lane				12.3	GHz
LOS De-Assert	LOS_D			-13	dBm
LOS Assert	LOS_A	-25			dBm
LOS Hysteresis	LOS_H	0.5			dB
