E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Keywords: | Ethernet PoE Switch | Input Power: | 48~57VDC |
|---|---|---|---|
| Optical Port: | 1-port Gigabit SC | Connector: | 8 X RJ45 |
| Power Pin: | 4/5(+), 7/8(-) | Casing: | IP40 Aluminum Case |
| High Light: | Industrial PoE Switch Aluminum Case,Industrial PoE Switch IP40 |
||

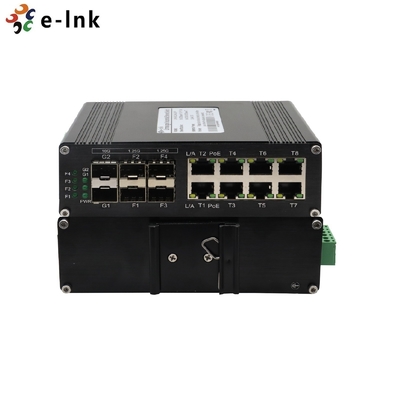

PoE Switch Industrial 8-Port Gigabit 802.3at RJ45 + 6-Port 1000X SFP Fiber
Power Over Ethernet Switch Advantages
► IEEE802.3af/at compliant
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
Technical Indexes
| Connector: | 8 x RJ45 |
| Optical Port: | 6 x 1000Base-X SFP |
| PoE Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power Status |
| Ethernet(Per Port): | Link/Activity |
| PoE (Optional) | PoE Status |
| Fiber: | Gigabit SFP Port: F1~F6 |
Overview

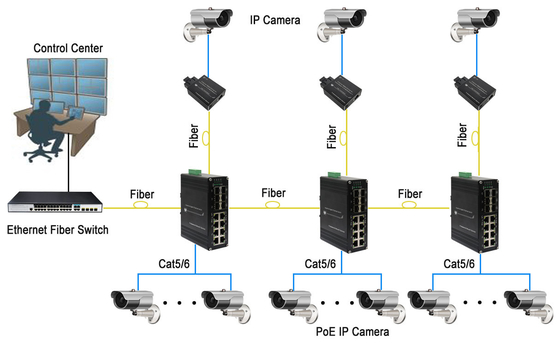

LNK-IMC608GP-SFP Series is 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
|
Model |
Description |
|
LNK-IMC608GP-SFP |
Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
|
SFP Options
|
SFP option. Please select your SFP on our SFP Options Page SFP module is to be purchased separately. |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
