Product Details:
Payment & Shipping Terms:
|
| Keywords: | Fiber Optic Ethernet Switch | Connector: | 8-Port RJ45 Gigabit |
|---|---|---|---|
| Optical Port: | 4-Port 1G SFP, 2-Port 10G SFP | Input Power: | 12~48VDC |
| Power Consumption: | 8W Max | Weight: | 0.55Kg |
| High Light: | 8W Max Industrial Ethernet Switch,Auto MDI Industrial Ethernet Switch,Automatic Resettable Fiber optic ethernet switch |
||

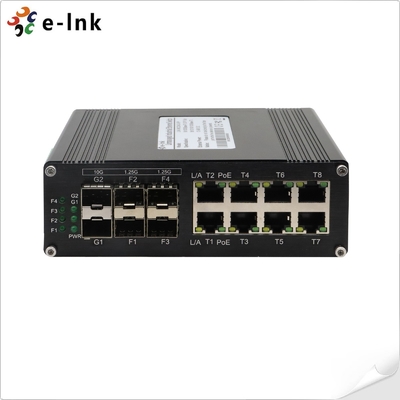

Ethernet Switch Industrial 8-Port RJ45 Gigabit + 4-Port 1G SFP + 2-Port 10G Fiber
Fiber Ethernet Switch Advantages
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Technical Indexes
| Connector: | 8 x RJ45 |
| Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| MTBF | > 200,000 hrs |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F1~F4 |
| 10G SFP+ Port: G1, G2 | |
| Casing: | Aluminum Case |

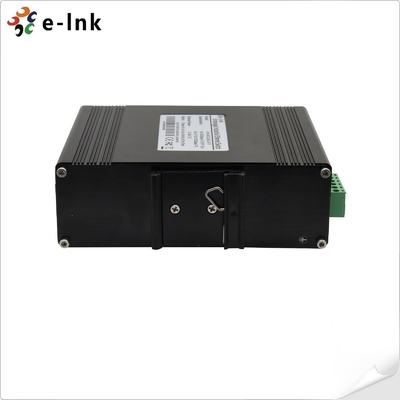

| Mounting Options: | DIN-Rail mount |
Overview
LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
LNK-IMC2X4S8G |
Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
