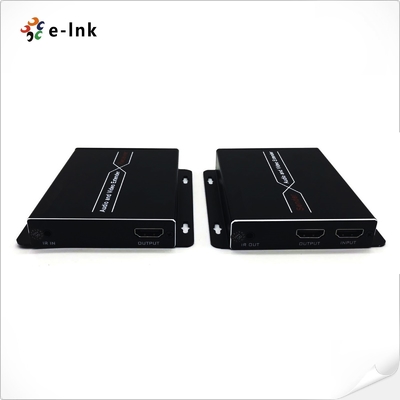

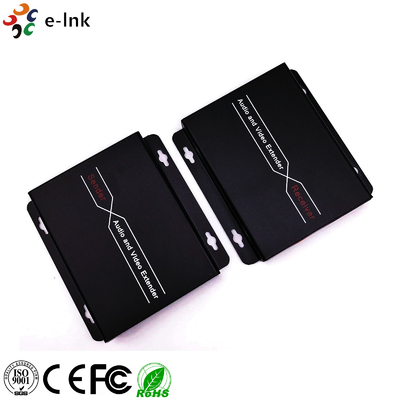

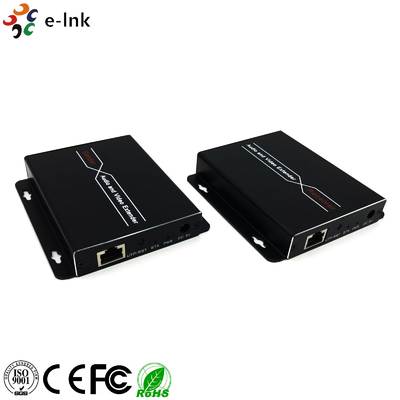

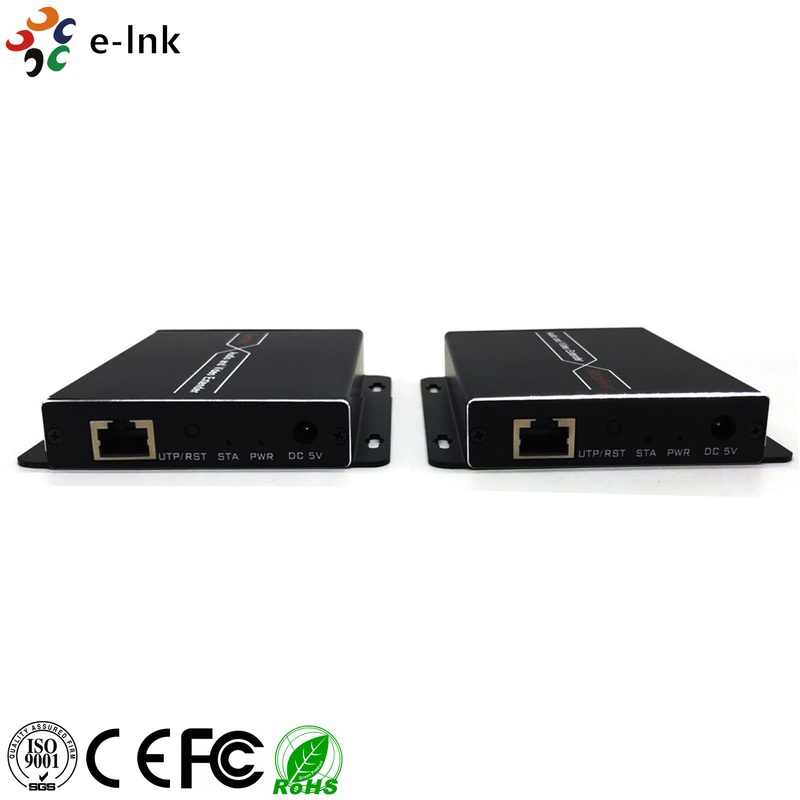

120m Extend HDMI Over Fiber Optic Extender 1080P 60Hz 165MHz With IR

Name: 120m Extend HDMI Over Fiber Optic Extender 1080P 60Hz 165MHz With IR
Brand: E-link
SKU: LNK-HDE-120
Rating: 4.5 (154 reviews)

Large Image : 120m Extend HDMI Over Fiber Optic Extender 1080P 60Hz 165MHz With IR

Product Details:

Place of Origin:	Guangdong
Brand Name:	E-link
Certification:	ISO
Model Number:	LNK-HDE-120

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	please contact seller
Packaging Details:	Standard export package
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	10000

Contact Now

Detailed Product Description

Standards:	HDMI 1.3; HDCP 1.2	Pixel Clock:	165MHz
Data Rate:	6.75Gbps	Resolution:	1920X1080@60Hz
Power Supply:	DC 5V	Power Dissipation:	MAX 4W
High Light:	120m Extend HDMI Over Fiber Optic Extender , IR HDMI Over Fiber Optic Extender , 165MHz HDMI KVM Extender

120 Meter Extend Distance 1080P 60Hz HDMI KVM Extender Over Network Cable with IR

Features

Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type
Uncompressed and zero latency
Auto adjustment to match the cable length
The highest resolutions supported is up to 1080P@60Hz
Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
Support EDID pass-through
Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

Technical Indexes

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	38kHz
Ethernet	Interface	RJ45(568B)
Ethernet	Transmission distance	UTP CAT5e---120m
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	10097.517mm
	The warranty	1 year free warranty

Ordering Information

Part No	Description of product
LNK-HDE-120	HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs
