Product Details:
Payment & Shipping Terms:
|
| Input Power: | 48~57VDC | PoE Standard: | 802.3bt 90W |
|---|---|---|---|
| Connector: | 2-port 10/100/1000BASE-T RJ45 | Optical Port: | 2 SFP Port 100Base-FX Or 1000Base-X |
| Dimensions: | 95 X 70 X 30 Mm | Mounting Options: | DIN-Rail / Wall-mount |
| High Light: | 24W SFP Ethernet Media Converter,48VDC Ethernet Media Converter,100/1000Base-X SFP Ethernet Switch |
||

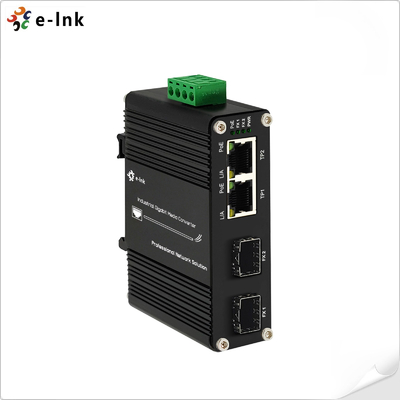

Mini Industrial 2-Port 1000Mbps 802.3bt 90W PoE Switch With 2-Port SFP Fiber
2-Port PoE Switch Features
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

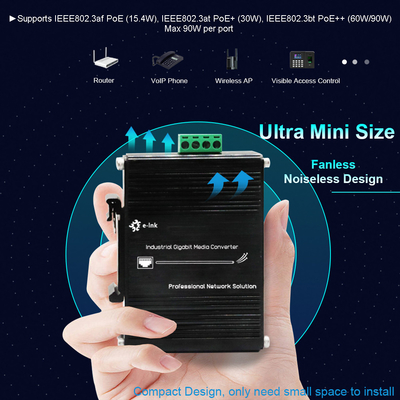

► Supports IEEE802.3af/at PoE+ (30W) or IEEE802.3bt PoE++ (90W)
► Supports Link Fault Pass Through
► Supports DIN-Rail & Wall-mount installation
Unmanaged Fiber Ehternet Switch 802.3bt Technical Indexes
| Standard: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |

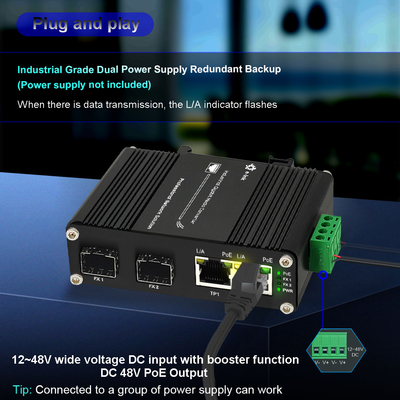

| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 189W Max. |
| PoE: | PD Plug Status |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
Din Rail Industrial Gigabit PoE Switch Overview
LNK-IMC202GP90-SFP Series is a DIN rail type 802.3bt 90W PoE Switch that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +80°C. LNK-IMC202GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
2-Port Copper to 2-Port Fiber Ethernet Switch Ordering Information
| Model | Description |
| LNK-IMC202GP90-SFP | Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
