24-Port Gigabit 802.3at PoE To 4-Port Gigabit TP/SFP Combo Layer-2 Managed Switch
24-port PoE Network Switch Advantages
► 24-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode
► Web smart management for easy application
► SNMP V1/V2/V3 management
Layer 2 Managed Fiber Optic PoE Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 24x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 4xGigabit TP/SFP Combo Managed Switch |
| PoE | |
| PoE Standard | 24x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| Power Information | |
| Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 400W |
| Physical Property | |
| Dimensions | 440mm x 290mm x 45mm (L x W x H) |
| Installation mode | Rack Mounting |
| Working Environment | |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -40℃~75℃ |
| Warranty | |
| MTBF | 200,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |

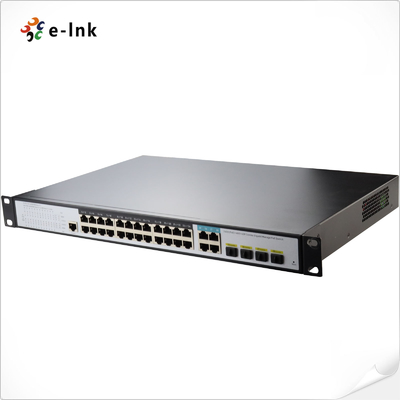

24-port PoE To 4-port SFP Fiber Ethernet Switch Overview
TS-M324GP-4G4SFP Layer 2 Managed Gigabit Switch provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 4 extra Gigabit TP/SFP combo interfaces. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 400 watts for the different types of PoE applications being employed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Enterprise Gigabit PoE Switch Ordering Information
| Model | Description |
| TS-M324GP-4G4SFP | L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Managed Switch, total power budget of up to 400 watts |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
