Product Details:
Payment & Shipping Terms:
|
| Keywords: | Managed 16-Port PoE Switch | Management: | SNMP V1/V2/V3 |
|---|---|---|---|
| PoE Standard: | 802.3af/at 30W | Fiber Port: | 2-port 100/1000Base-FX SFP |
| Power: | MAX 250W | Installation Mode: | Rack Mounting |
| High Light: | Enterprise Layer 2 Managed Switch,Layer 2 Managed Switch 250W,Managed 16 Port PoE Switch |
||

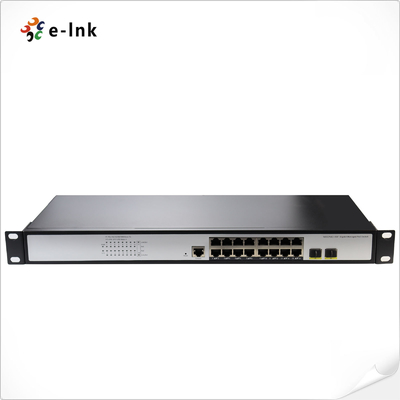

Enterprise Layer 2 Managed Switch 16-Port Gigabit 802.3at PoE To 2-Port 100/1000X SFP
Commercial Fiber Optical Network Switch Advantages
► 16-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 2-Port 100/1000BASE-X mini-GBIC/SFP
► RJ45 console interface for basic management and setup
► Web smart management for easy application
► Support loop protection, automatic recovery
Layer 2 Managed 16-Port PoE Switch Technical Indexes
| RJ45 port and speed | 16x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Ethernet standards |
IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3af/at IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 56Gbps |
| PoE Standard | 16x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| Power |
Built-in power AC 100~240V 50/60Hz MAX Current 5.2A MAX Power 250W |
| Protection grade | IP30 |
| Dimensions | 440mm x 190mm x 44.5mm (L x W x H) |
| Installation mode | Rack Mounting |
| Weight | 3000g |
| Operating Temperature | -20℃~55℃ |
| MTBF | 200,000 hours |
| Defects Liability Period | 1 year warranty, lifetime technical support |
16-port PoE To 2-port SFP Gigabit Fiber Switch Overview
TS-M316GP-2SFP Layer 2 Managed Gigabit Switch provides 16 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight Gigabit ports provides 36 watts of power, with a total power budget of up to 250 watts for the different types of PoE applications being employed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Enterprise Gigabit PoE Switch Ordering Information
| Model | Description |
| TS-M316GP-2SFP | L2+ 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch, total power budget of up to 250 watts |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
