Product Details:
Payment & Shipping Terms:
|
| Keywords: | Managed Ethernet PoE Switch | Input Voltage: | AC100-240V |
|---|---|---|---|
| Power Supply: | 52V 7.69A | PoE Port: | 24-port 10/100/1000Mbps |
| SFP Port: | 4-port 10G SFP | Operating Temperature: | -10~50°C |
| High Light: | 24 port L3 Managed Switch,Enterprise L3 Managed Switch,FCC Managed Ethernet PoE switch |
||

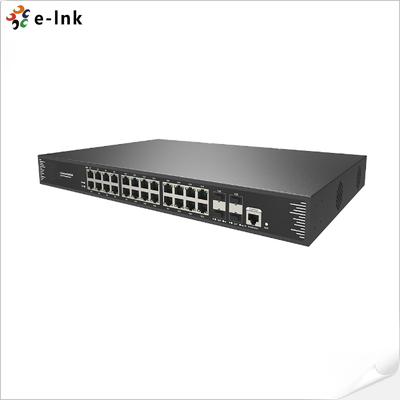

Enterprise 24-Port 1000M Gigabit 802.3at PoE To 4-Port 10G SFP+ Fiber L3 Managed Switch
Commercial Fiber Ethernet Switch Advantages
►24x 10/100/1000M RJ45 (PoE1-24) + 4x 10G SFP+
►L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2
►Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control
►Genius PoE, PoE power supply priority, PoE watchdog, PoE port power supply and power configuration, PoE time management
►Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection
►Lightning Protection: Common mode ≥6 KV, static: contact ≥6KV, air ≥8KV
24-port Gigabit Managed PoE Switch Overview
E-link LNK-L4024GP-SFP 24-port Gigabit Layer 3 managed Ethernet PoE switch. Support 24 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Power Over Ethernet Switch Technical Indexes
| Ethernet Port |
24 * 10/100/1000Mbps PoE Port 4 * 10G SFP Port 1 * RJ45 Console Port |
| PoE protocol |
IEEE802.3af (15.4 W) IEEE802.3at (30 W) IEEE802.3bt (90 W) |
| Network Media |
10BASE-T: Cat3; 4; 5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP (≤100 M) 1000BASE-TX: Cat5 or above UTP (≤100 M) Multi-mode Fiber: 50/125; 62.5/125; 100/140um Single-mode Fiber: 8/125; 8.7/125; 9/125; 10/125um |
| Working Environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C |
| Voltage |
Input Voltage: AC100-240V/50-60Hz Power supply: 52V7.69A (52V/15.4A Optional) |
| Packing list |
|
24-port Gigabit 802.3at To 4-port 10G SFP PoE Switch Ordering Information
| Model | Description |
| LNK-L4024GP-SFP | 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ L3 Managed Switch |
