Product Details:
Payment & Shipping Terms:
|
| Keywords: | Ethernet Over Power Adapter | Power: | 110-240VAC |
|---|---|---|---|
| Interface: | 10/100/1000M Self-adaption RJ-45 Port | Data Rate: | Up To 1.2Gbps |
| Management: | HTTP Web-based | Operating Temperature: | 0℃~40℃ |
| High Light: | Mini HomePlug Powerline Ethernet Adapter,AV2 Powerline Ethernet Adapter,1200M PLC Network Adapter |
||

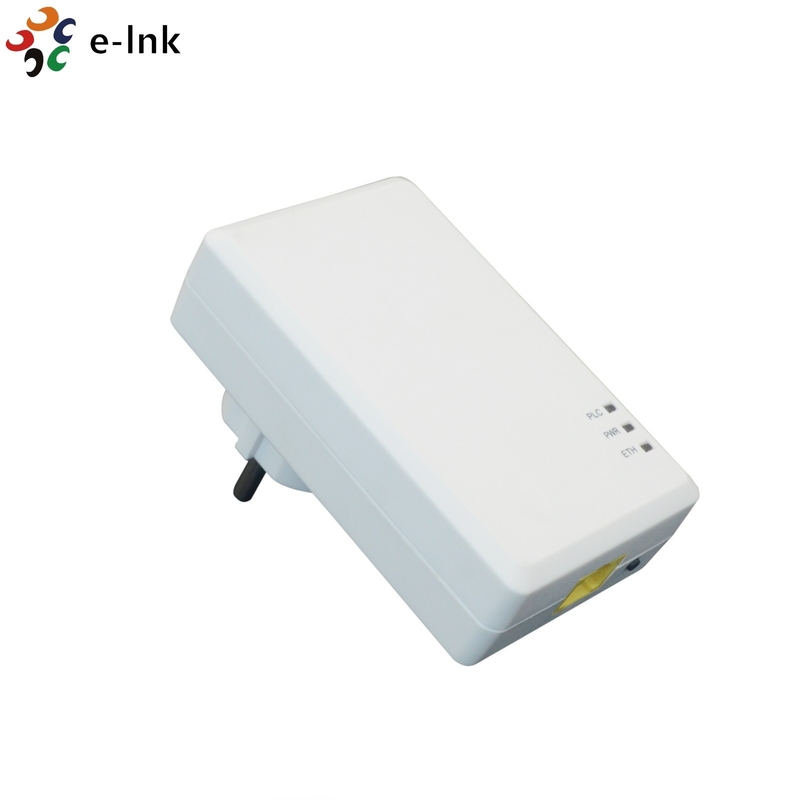

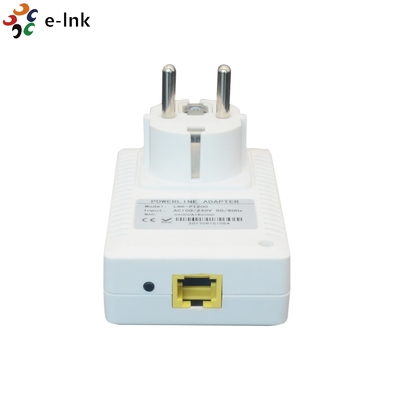

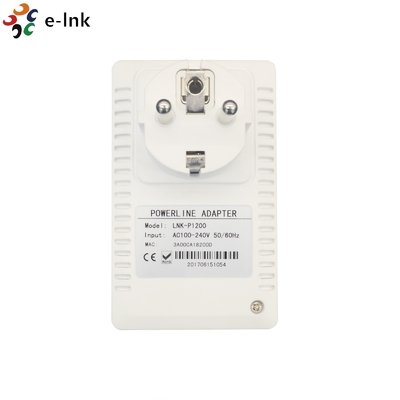

1200M Mini HomePlug AV2 Powerline Ethernet Adapter PLC Adapter Kit
Powerline Adapter Advantages
► No wiring and setting.
► Adopt HomePlug AV2, transmission rate(PHY) up to 1200Mbps.
► Adopt QOS technology, guarantee the transmission stability of streaming media.
► Hardware or software encryption(optional)
► Support TR-069(Remote management and auto upgrade)
Technical Indexes
|
LED display lights |
Ethernet light (ETH) PLC communication status (ACT) Power light (PWR) |
|
Ethernet |
IEEE802.3 10/100/1000MbpsBaseT auto-sense Auto rate and duplex negotiation MDI/MDX support |
|
Modulations |
OFDM,FEC,Flexible frequency configuration |
|
Management |
HTTP Web-based;firmware upgrade via TFTP TR-069 Supported(Optional) |
|
Security |
AES 128 bits encryption ensures total data security |
|
Networking Protocols |
802.1D Ethernet Bridge 802.1Q VLAN Quality of Service(QoS) IGMPV1/V2/V3(IPV4)Snooping & MLD(IPv6)Snooping |
|
Power |
110-240VAC 50Hz/60Hz Auto power saving mode max 0.5W(in standby mode) |
|
Environment Connection |
Operating temperature:0-40 degrees Celsius Relative humidity:8-95%(non-condensing) |
Overview
The E-LINK LNK-P1200 which adopts HomePlug AV2 standard supplies the maximum transmission speed at 1200Mbps.You can erect the network through the existing power line of family, just plug it into the power socket wherever you can find, the strong anti-interference ability makes it avoid being interfered by the other electric devices, it also compatible with the IEEE1901 devices and the adoption of MIMO technology upgrades the power line communication speed and quality, it enhances the multimedia streaming quality through prioritizing flux, streaming HD video, high speed network linking, VOIP flux and upgraded QOS functions.
Ordering Information
|
Model |
Description |
|
LNK-P1200 |
1200Mbit HomePlug AV Powerline Mini Adapter |
