Product Details:
Payment & Shipping Terms:
|
| Keywords: | Power Over Ethernet Extender | Standard: | IEEE 802.3at/at |
|---|---|---|---|
| Connectors: | Shielded RJ-45 | Mounting: | Wall Of Shelf |
| Case: | IP65 Aluminum Case | Operating Temperature: | -40 To 75℃ |
| High Light: | Wall Mountable Power over Ethernet extender,Waterproof Ethernet PoE Extender,Gigabit Ethernet PoE Extender |
||

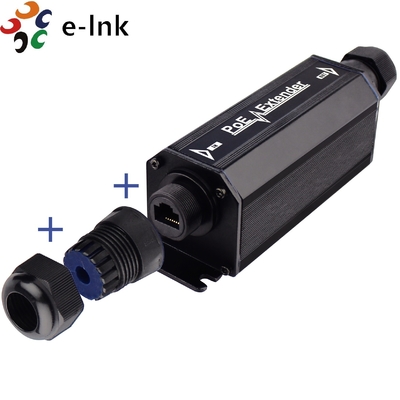

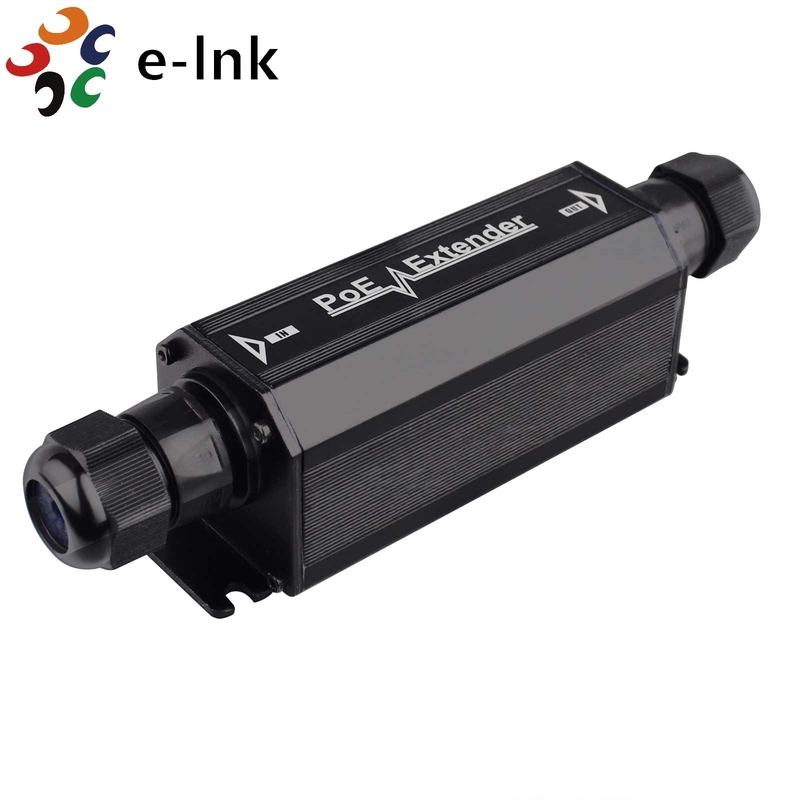

PoE Extender Water-Proof Outdoor Industrial 10/100/1000M Gigabit PoE Repeaters
Power Over Ethernet Repeater Advantages
► Extends the range of PoE and Ethernet an additional 100 meters
► No additional power supply is required
► Automatically detects and protects PoE equipments from being damaged by incorrect installation
► Full-rate network throughout the whole extended distance
► Compact size, Wall-Mountable design
Technical Indexes
| No. of channels | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet input |
Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Mounting | Wall of shelf |
| Environment | Outdoor IP65 |
| Environmental Conditions |
Operating Ambient Temperature:-40 to 75℃ Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 75℃ |
Overview
Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe. With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, 300 meters, or even greater distances, depending on PDs power required and power source.
Maximum Distances for Power Sources
Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.
Ordering Information
|
Model |
Description |
|
LNK-WP001G |
10/100/1000M PoE Extender 15.4W, extends the data transmission from 100m to 500m depending on PDs power required and power source |
