Product Details:
Payment & Shipping Terms:
|
| Forward Filter Rate: | 1,488,000pps (1000Mbps) | Cabling: | Cat5 Or Above |
|---|---|---|---|
| Maximum Distance: | 100m (328ft) | LAN: | 1 X RJ-45 STP, “Data” Input Port |
| POE: | 1 X RJ-45 STP, “Data + Power” Output Port | Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A Max. |
| Output Voltage: | DC 48-57V, 2A | Power Consumption: | 95 Watts Max. |
| Standard: | IEEE 802.3af/at/bt | Dimensions (W×D×H): | 147 X 62 X 30mm |
| Weight: | 0.45Kg | Casing: | Plastic Case |
| High Light: | FCC High Power POE Injector,328ft High Power POE Injector,95W Power Over Ethernet Extender |
||
Product Description
Technical Indexes
| Ethernet | |
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: |
High Power PoE (95W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |

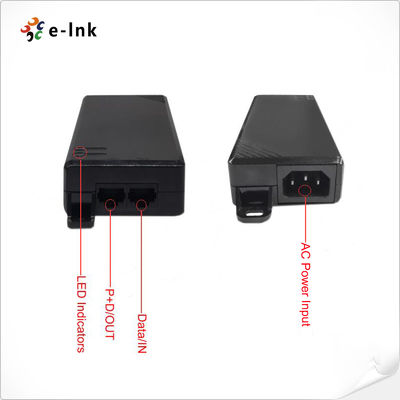

| Connector: |

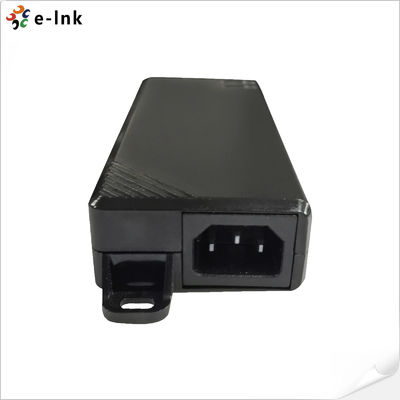

LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A max. |
| Output Voltage: | DC 48-57V, 2A |
| Power Consumption: | 95 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| Port: | RJ45 |
| Power Pin Assignment | Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
| PoE Power Output | DC 48V-57V/95-watt PoE via 2-pairs |
| LED Indicators | |
| Power: | Power Status |
| Port: | PoE Status |

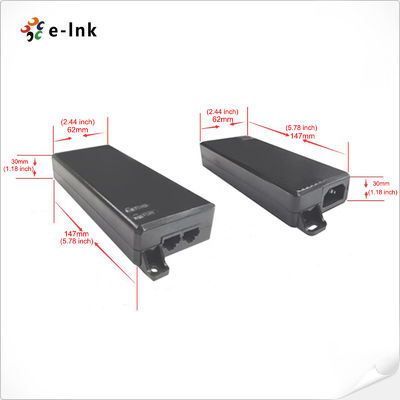

| Dimensions (W×D×H): | 147 x 62 x 30mm |
| Weight: | 0.45Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop/Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
