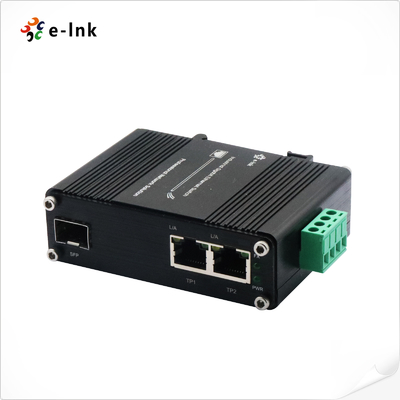

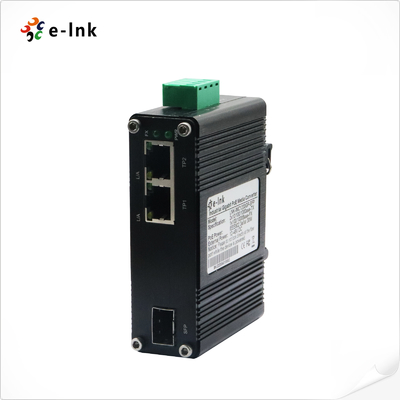

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Ethernet Media Converter
Overview
The LNK-IMC1200G-SFP Series represents a robust line of DIN rail-mounted media converters designed
for industrial networking applications. These hardened-grade devices feature dual-port connectivity with
10/100/1000Base-T copper Ethernet and 100/1000Base-X SFP fiber interfaces, providing flexible media
conversion capabilities. Engineered for reliability in harsh environments, the series operates across an
extended temperature range of -40°C to +75°C while maintaining compliance with EN55022 standards.
Supporting both half-duplex and full-duplex modes, these converters accommodate various SFP modules
(single-mode/multi-mode, 1/2 core) to meet diverse fiber network requirements. Ideal for industrial
automation, transportation, and outdoor installations, the LNK-IMC1200G-SFP Series delivers stable
performance where standard commercial-grade equipment would fail.
Key improvements:
1. Clearly positions as a series rather than single model
2. Better organized technical specifications
3. Stronger value proposition for industrial use
4. Includes specific application examples
5. More professional technical language
6. Maintains all critical specifications while improving flow
7. Adds context about operating conditions ("where standard equipment would fail")
Features
► 12~48VDC Terminal Block Power Input

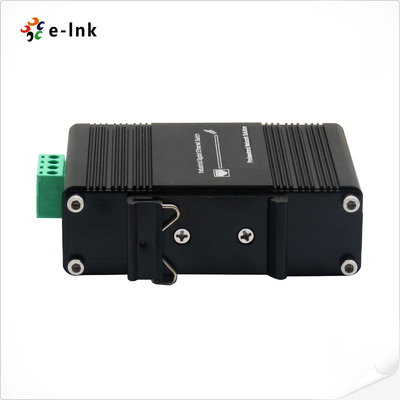

► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

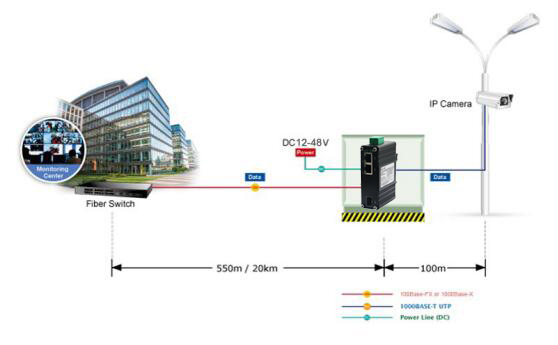

Application
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type: |
Store-and-Forward |
| Forward Filter Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
1 Mbit |
| Max Packet Length: |
9K Bytes |
| Address Table Size |
2K MAC Addresses |
| Interface |
| Connector: |
2 x RJ45 |
| Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| Input Power: |
12~48VDC, 4-pin terminal block |
| Power Consumption: |
5W Max. |
| LED Indicators: |
| PWR: |
Power Status |
| L/A: |
Data LINK Status |
| SPD: |
Ethernet Status |
| 100M/1000M: |
Fiber LINK Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
| Model |
Description |
| LNK-IMC1200G-SFP |
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
