Product Details:
Payment & Shipping Terms:
|
Fiber Port: | SFP | Standard: | IEEE802.3 |
---|---|---|---|
Power Supply: | DC 5V | Power Consumption: | <5W |
Rate: | 10 / 100 / 1000Mbps | Conversion Means: | Media Conversion |
Overview

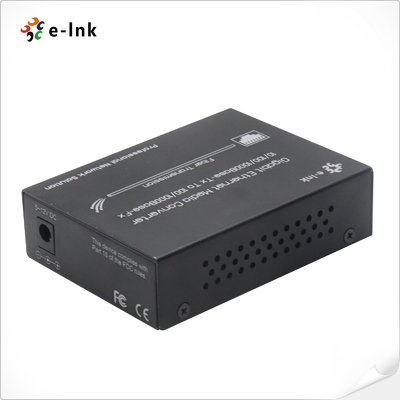

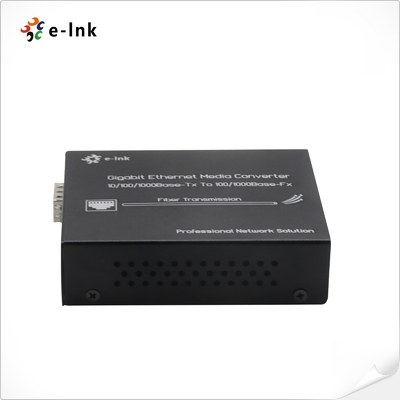

LNK-3011WSFP is an Ethernet media converter that converts media transmission between UTP Copper cablings and fiber SFP (Small Form-Factor Pluggable) Transceivers. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120 km via fiber optical cables.
Features
· Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
· Supporting full-duplex and half-duplex and its auto-sensed
· Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
· Supporting the transmission of extra-long VLAN packets
· Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
· Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

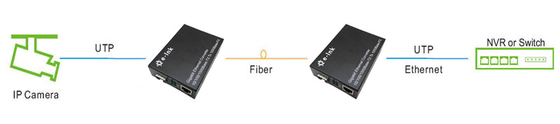

Application
Technical Indexes
Parameter | Specifications |
Access mode | 10/100/1000Mbps Gigabit Ethernet |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
Wavelength | 850nm/1310nm/1550nm(Based On SFP Module Used) |
Transmission distance |
Multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) Single mode Dual-fiber: 20/40/60/80 Km Single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
Port |

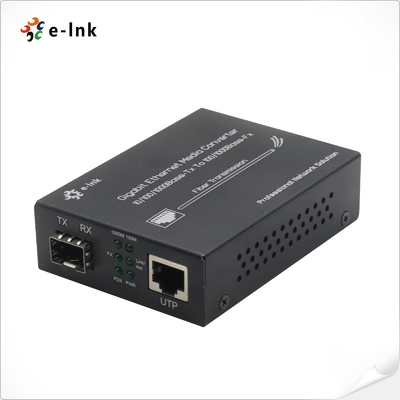

One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: SFP 3.3V |
Conversion means | Media conversion |
BER | <10-9 |
MTBF | 100,000 hours |
LED indicator |
POWER (power supply), FP (Optical Connection ), TP LINK1000 (TP cable rate1000M), TP Link/ACT (TP cable connection and data transfer), SD (Optical input) |
Power supply |
DC 5V |
Power consumption |
<5W |
Operating temperature | 0~55ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
