Industrial Ethernet Media Converter 10/100/1000Base-T to 100/1000Base-X SFP -40~75°C
Overview

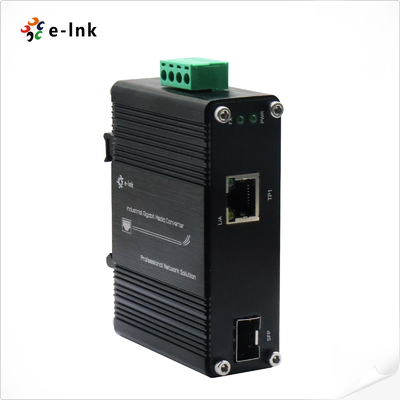

The LNK-IMC3012-SFP is a robust, industrial-grade media converter designed to seamlessly
bridge copper and fiber optic networks. It features a 10/100/1000BASE-T RJ45 port and a
100/1000BASE-X SFP port, offering flexible networking options for various industrial
applications. With support for full/half-duplex and auto-negotiation, it ensures stable data
transmission across long distances. Its hardened design is ideal for extreme environments,
operating in temperatures from -40°C to +75°C, making it the perfect solution for outdoor,
factory, and critical infrastructure installations.
Features
Flexible Network Connectivity – 10/100/1000BASE-T RJ45 port and 100/1000BASE-X SFP
port for versatile network integration.
Industry-Grade Durability – Hardened design ensures reliable performance in harsh
environments, with a wide operating temperature range of -40°C to +75°C.
Energy Efficient – Compliant with IEEE 802.3az, reducing power consumption for
cost-effective operation.
Easy Diagnostics – Extensive LED indicators for quick status monitoring, including power,
link, and speed indicators.
Compact & Easy Installation – Mountable on DIN-rail or wall, with a compact aluminum
casing, perfect for space-constrained environments.
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
3W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
SPD:
|
Ethernet Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|

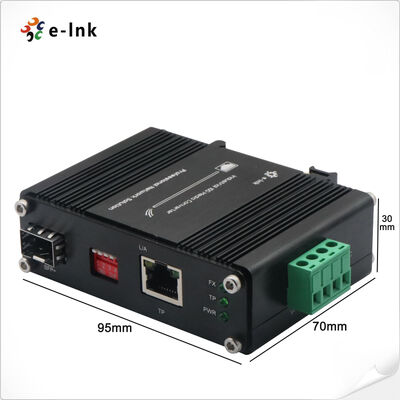

Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC3012-SFP
|
Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|

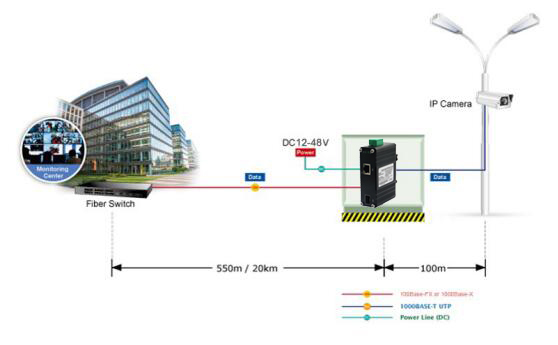

Application
