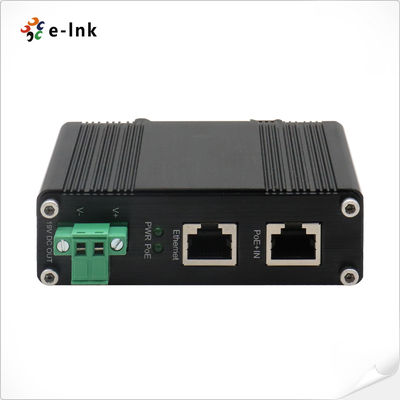

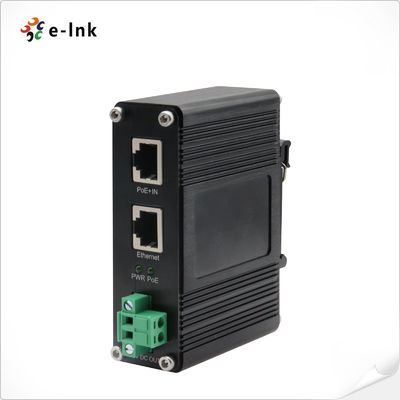

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)
Industrial Gigabit PoE Injector Overview
The LNK-INJ301-100 is an industrial-grade, hardened, single-port Gigabit PoE++ injector
that supports IEEE 802.3bt and offers a maximum output power of 100W . It supports
10/100/1000Base-T auto-sensing, features a wide 12-48V DC input voltage range ,
and includes a built-in voltage boost function to ensure stable performance even when
powering devices over long distances. It connects non-PoE switches to PoE end devices,
such as network cameras and wireless access points, with a transmission distance of
up to 100 meters . Its rugged design is suitable for harsh industrial environments and
complies with IEEE 802.3ab standards.
Industrial Gigabit PoE Injector Features
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 100W PoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial Gigabit PoE Injector Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10 BASE-T Ethernet
IEEE802.3u 100 BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3 x Flow Control
|
| Processing Type: |
Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: |
1,488,000pps (1000Mbps) |
| Cabling: |
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
|
| Maximum Distance: |
Cat5 UTP up to 100m |
| Connector: |
2x RJ45 |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
100W Max. |
| Power over Ethernet: |
| Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: |
RJ45 |
| Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
| PoE Budget: |
Up to 100-watt PoE budget (48VDC)
Up to 100-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
| LED Indicators: |
| Power: |
Power Status |
| PoE: |
PoE Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
IP40 Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Standard Accessories |
| Package Contents |
LNK-INJ301-100 |
| User's manual |
| Wall-mount kit |
| DIN-mount kit |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500V |
| ESD: 4KV/8KV |
Industrial Gigabit PoE InjectorOrdering Information
| Model |
Description |
| LNK-INJ301-100 |
Hardened Gigabit 1-port Ethernet Input + 1-port 100W PoE++ Output Injector
with 12~48V DC wide range power input
|
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
