Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485

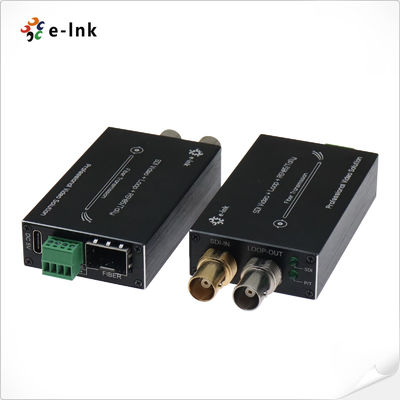

Mini 3G-SDI Fiber Converter Overview
Mini 3G/HD-SDI fiber converter supports 1 channel 3G/HD-SDI video (with audio embedded), Tally signal and reverse RS485 signal transmission via optical fiber, and can output local monitoring signal via 3G/HD-SDI loop. E-link 3G/HD-SDI video fiber converter includes a transmitter and a receiver, supporting the transmission of 1080P 3G/HD-SDI signals.
Mini 3G-SDI Fiber Converter Features
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with SDI camera systems
► Long transmission capability up to 80 km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► super optic dynamic range and free of adjustment;
► 1470~1610nm CWDM wavelengths optional;
► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Mini 3G-SDI Fiber Converter Technical Indexes
| Fiber Optical interface |
| Fiber interface |
Simplex LC |
| Transmission distance |
550m-20Km |
| Wavelength |
1310nm/1550nm |
| Video |
| Video interface |
BNC |
| Video input/output impedance |
75Ω |
| Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate |
Max 3.2Gb/s |
| Differential gain (10%～90% APL) |
<1% |
| SDI format support |
625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC |
| 720p50, 720p59.94 |
| 1080i 23/24/30/50/59.94 |
| 1080P 23.98/24/30/50/60 |
| Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Data |
| Physical interface |
Industrial standard screw terminal |
| Data type |
Tally & Reverse RS485 |
| Frequency/Rate support |
Max. 115200bps for RS422
Max. 57600bps for RS485
|
| BER |
<10ˉ9 |
| Electrical |
| Power adaptor |
DC 5V |
| Power consumption |
<5W |
| LED Indicator |
| SDI |
SDI video |
| P/T |
Power Supply |
| Mechanical |
| Dimensions (LxWxH) |
73 x 44 x 17 mm (TX)
73 x 44 x 17 mm (RX)
185 x 132 x 100 mm (Package)
|
| Weight |
75g (TX)
75g (RX)
450g (Package)
|
| Casing |
Aluminum Case |
| Mounting Options |
Desktop |
| Environmental |
| Working Temperature |
-20℃～+70℃ |
| Storage Temperature |
-40℃～+80℃ |
| Working Humidity |
0~95% |
| MTBF |
≥100000 hours |

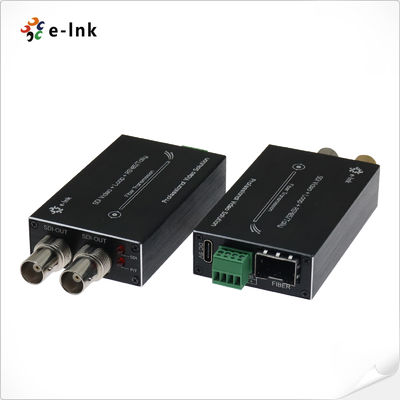

Mini 3G-SDI Fiber Converter Interface & LED
Mini 3G-SDI Fiber Converter Ordering Information
| Model |
Description |
| LNK-M3G-1V-MM |
Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V-20 |
Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| LNK-M3G-1V-40 |
Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
Mini 3G-SDI Fiber Converter Application
