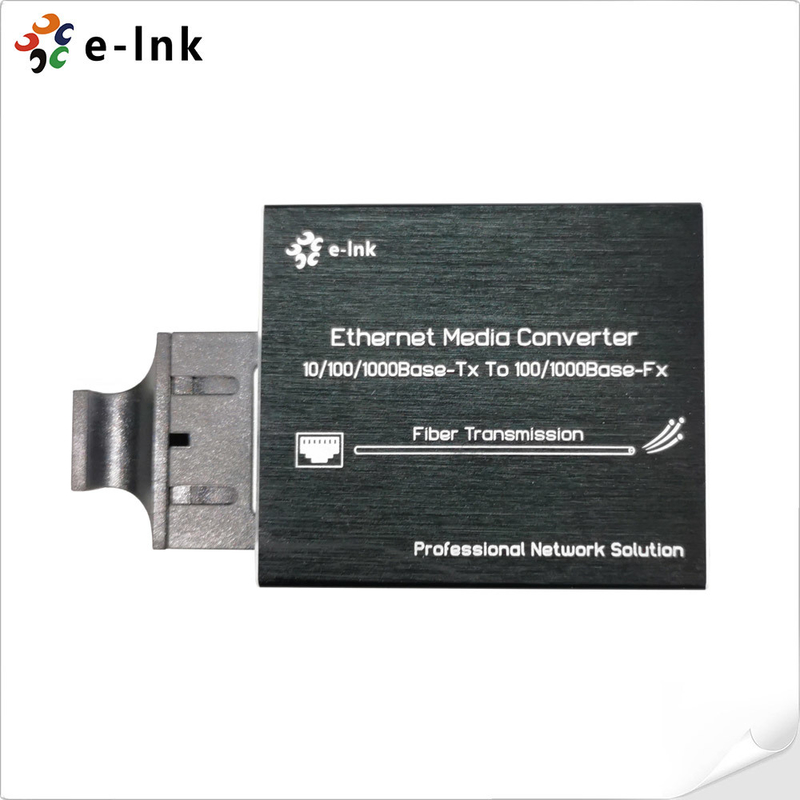

Ultra-Compact USB-Powered Gigabit Ethernet to Fiber Media Converter

Large Image : Ultra-Compact USB-Powered Gigabit Ethernet to Fiber Media Converter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-M3011 series
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$10-$25
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union,MoneyGram,T/T
Supply Ability:	10000 per mouth

Contact Now

Detailed Product Description

Access Mode:	10/100/1000Mbps Adaptive Ethernet	Fiber Options:	MM/SM, Dual/single Fiber, SC Connector
Distance:	220m–120km Depending On Fiber Type	Power Input:	5VDC Via USB Type-C, 3W Low Power
Dimensions:	62 × 44 × 18 Mm, Lightweight Micro Type	MTBF:	>100,000 Hours, Stable & Durable

Ultra-Compact USB-Powered Gigabit Ethernet to Fiber Media Converter

Overview

The LNK-M3011 is a micro-sized Gigabit Ethernet media converter designed for flexible

fiber extension. With USB power input and dual-mode 100/1000Base-FX support, it

provides an easy, portable, and reliable copper-to-fiber conversion for networking

applications up to 120km.

Features

Ultra-compact design – fits easily into tight spaces or integrated systems

USB-powered (5VDC) – ideal for mobile and portable applications

RJ45 + SC port – auto-detect 10/100/1000Base-T to 100/1000Base-FX

Extended fiber reach – up to 120 km via single-mode fiber

Auto MDI/MDI-X & duplex sensing – simplifies installation

Supports 9K jumbo frames – improves data throughput

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5V (Type-C)
Power consumption	3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	62 x 44 x 18 mm

Ordering Information

Model	Description
Model	Description
LNK-M3011	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor
LNK-M3011-20	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M3011S-20A	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor
LNK-M3011S-20B	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor
