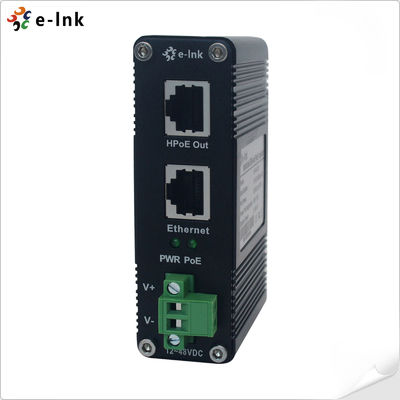

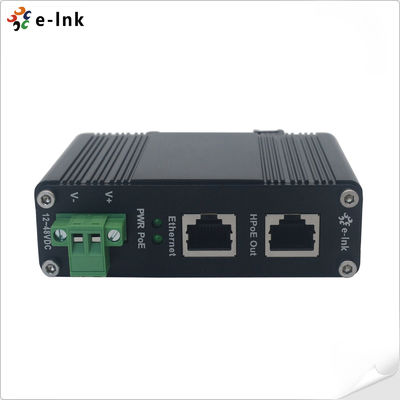

12~48V DC Power Input Industrial Gigabit 60W PoE Injector
Industrial Gigabit PoE Injector Overview
The LNK-INJ301-60 is an industrial-grade, hardened Gigabit PoE injector that supports
IEEE 802.3af/at standards and offers a maximum output power of 60W . Equipped with
auto-sensing 10/100/1000Base-T ports and fully compliant with IEEE 802.3ab , it enables
data and power connections between non-PoE switches and PoE end devices
(such as cameras and wireless access points) within a range of 100 meters .
Supporting a wide-range 12-48VDC power input , it provides a high-availability
solution for mission-critical and harsh environments,
meeting the demands of industrial-grade applications.
Industrial Gigabit PoE Injector Features
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Weight 0.25Kg
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Industrial Gigabit PoE Injector Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Processing Type: |
Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: |
1,488,000pps (1000Mbps) |
| Cabling: |
10/100/1000Base-T: Cat5 or above |
| Maximum Distance: |
Cat5 UTP up to 100m |
| Connector: |
2x RJ45 |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF: |
>200,000hrs |
| Electrical and Mechanical |
| Input Power: |
12~48VDC (Terminal Block) |
| Power Consumption: |
65W Max. |
| PoE (Power over Ethernet) |
| Standard: |
IEEE802.3af/at |
| Port: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| Max. Power per Port: |
60W Max per port (Alternative B Mode) |
| LED Indicators: |
| Power: |
Power Status |
| PoE: |
PoE Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| FCC part 15, Class A |
| EN55022:2006+A1: 2007 Class A |
| Surge Protection: |
| RJ45: 1KV |
| Power: 500V |
| ESD: 4KV/8KV |
Industrial Gigabit PoE InjectorOrdering Information
| Model |
Description |
| LNK-INJ301-60 |
12~48VDC Power Input Industrial Gigabit 60W PoE Injector |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately |
Industrial Gigabit PoE Injector Application
