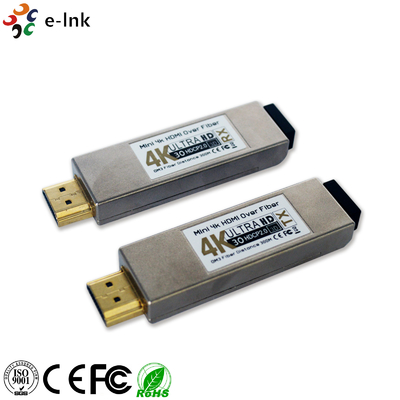

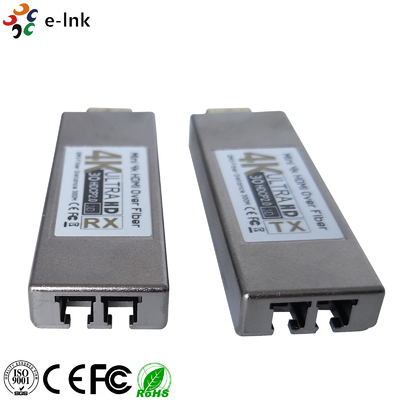

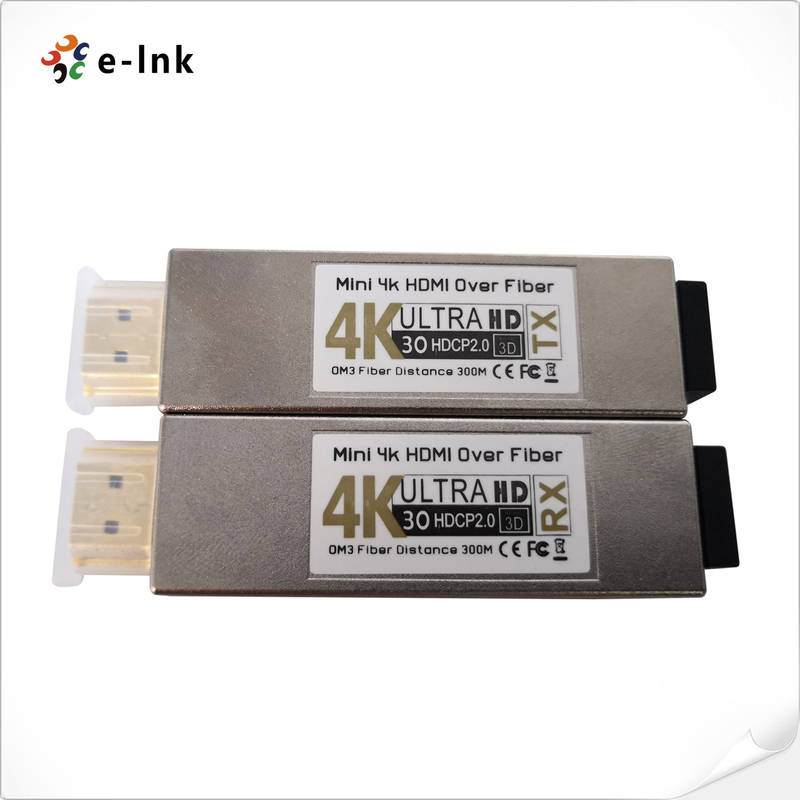

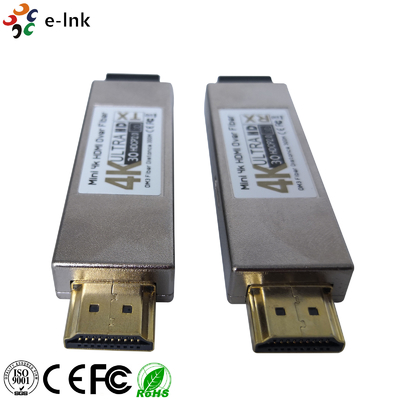

Micro 4K HDMI Optical Transceiver with Double Power Supply

Large Image : Micro 4K HDMI Optical Transceiver with Double Power Supply

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-106M

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	HDMI Over Fiber Optic Extender	Power Supply:	DC 5V
Gross Weight:	0.1 Kg / 0.22 Lb	Dimension:	3.15 X 0.79 X 0.35 In
Signal Support:	HDMI 1.4a HDMI Format Standard And HDCP Compliant	Operating Temperature:	0℃ ~ +55℃

HDMI Over Fiber Optic Extender's Product Description:

This HDMI Over Fiber Optic Extender are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. This HDMI Over Fiber Optic Extender's TRANSCEIVER converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. This HDMI Over Fiber Optic Extender's TRANSCEIVER converts the serial data back to an HDMI signal. This HDMI Over Fiber Optic Extender is RoHS compliant and lead-free per requirements in Europe and China. This HDMI Over Fiber Optic Extender is ideal for large-screen display, conferencing systems and home entertainment and so on. This HDMI Over Fiber Optic Extender has the ability of anti-interference, to ensure the stability of the signal.

Micro 4K HDMI Optical Transceiver with Double Power Supply 0

HDMI Over Fiber Optic Extender's Features:

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

► Supports All Modes up to 4K*2K@30Hz Resolution

► Standard HDMI Connector

► Integrated USB Connector for Power

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photodetector

► Video over (2) multimode fibers

► Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)

► Operating Case Temperature: 0~70°

HDMI Over Fiber Optic Extender's Technical Parameters:

Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Fiber Connector	Double LC Receptacle
Transmission Distance	Multi Mode, up to 984ft (300M)
Storage Temperature	-20°C to + 85°C
Humidity	to 90% RH (non-condensing)

HDMI Over Fiber Optic Extender's Application:

Micro 4K HDMI Optical Transceiver with Double Power Supply 1

HDMI Over Fiber Optic Extender‘s Support and Services:

HDMI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

HDMI Over Fiber Optic Extender's Packing and Shipping:

HDMI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

HDMI Over Fiber Optic Extender's Ordering Information:

Item	Description
LNK-106M	Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
