Micro 4K DVI Fiber Optic Extender with RS232

Name: Micro 4K DVI Fiber Optic Extender with RS232
Brand: E-link
SKU: LNK-MDR4K
Rating: 4.7 (150 reviews)

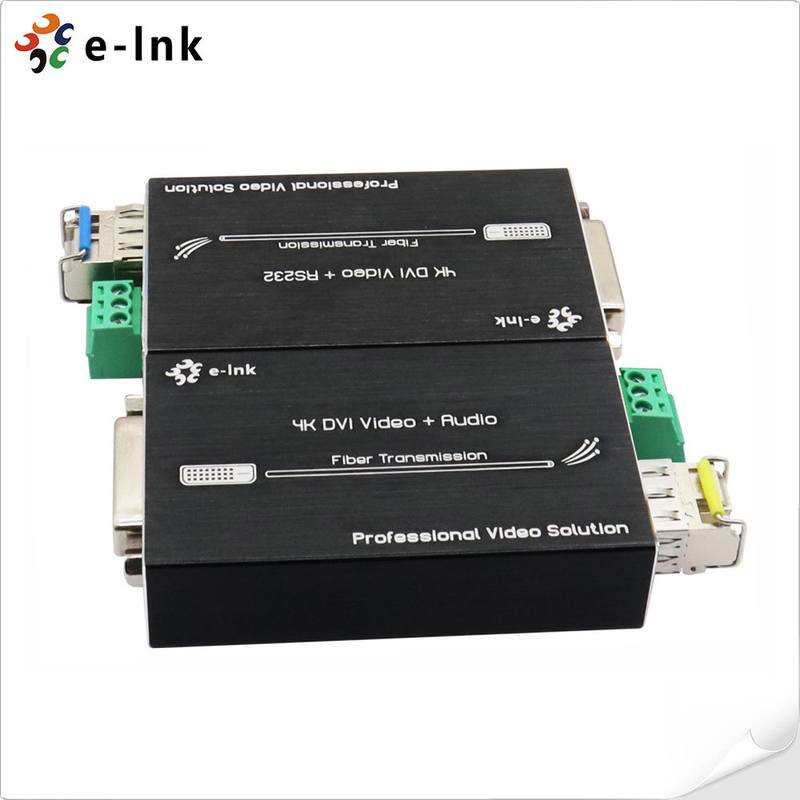

Large Image : Micro 4K DVI Fiber Optic Extender with RS232

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-MDR4K

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	DVI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	DVI To Fiber Optic Converter	Transmission Distance:	300m (Over OM3 Fiber) Up To 80km (Over Single-mode Fiber)

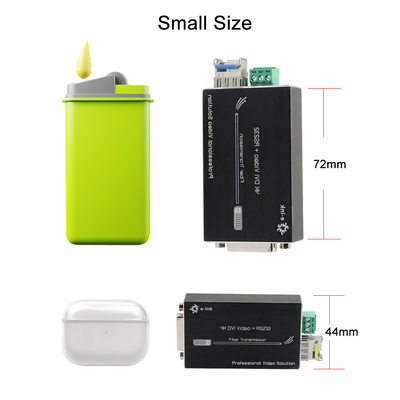

Weight:	60g / 0.13 Lb	Dimension:	2.87 X 1.73 X 0.69in (73x44x17mm)
Fiber Connector:	SFP/LC	Operating Temperature:	-10 ~ + 50°C

DVI Over Fiber Optic Extender's Product Description:

This DVI Over Fiber Optic Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter of this DVI Over Fiber Optic Extender converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver of this DVI Over Fiber Optic Extender converts the serial data back to an DVI signal. This DVI Over Fiber Optic Extenders are RoHS compliant and lead-free per requirements in Europe and China. This DVI Over Fiber Optic Extender is ideal for large-screen display, conferencing systems and home entertainment and so on. This DVI Over Fiber Optic Extender has the ability of anti-interference, to ensure the stability of the signal.

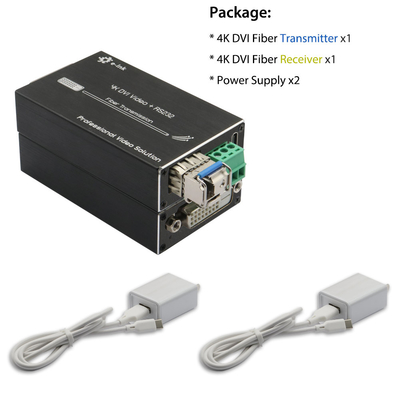

Micro 4K DVI Fiber Optic Extender with RS232 0

DVI Over Fiber Optic Extender's Features:

► DVI 1.0 and HDCP1.2 Support

► Uncompressed transmission, No delay, No losses

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Support Serial RS232 Signal

► Auto EDID, match different kind display device

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

DVI Over Fiber Optic Extender's Technical Parameters:

Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Storage Temperature	-20 ~ + 80°C

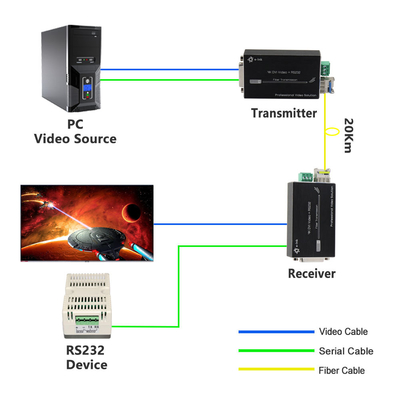

DVI Over Fiber Optic Extender's Application:

Micro 4K DVI Fiber Optic Extender with RS232 1

DVI Over Fiber Optic Extender‘s Support and Services:

DVI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

DVI Over Fiber Optic Extender's Packing and Shipping:

DVI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

DVI Over Fiber Optic Extender's Ordering Information:

Model	Description

LNK-MDR4K-MM	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S20	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S40	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S80	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
