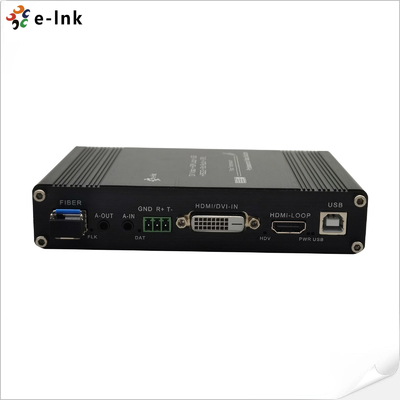

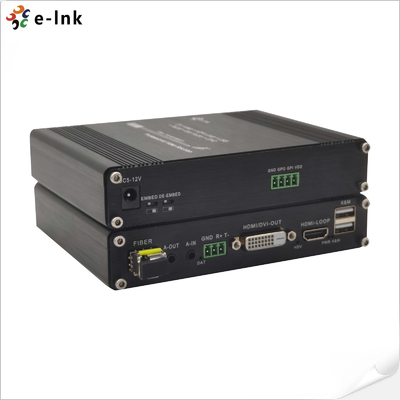

Multi-functional DVI Fiber Optic Extender with USB KVM RS232 Bidi Stereo Audio GPIO

Large Image : Multi-functional DVI Fiber Optic Extender with USB KVM RS232 Bidi Stereo Audio GPIO

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-KVM-DVI-1D1BA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Contact the seller
Packaging Details:	DVI Video to Fiber Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Video Standards:	DVI 1.0; HDCP 1.2	Power Dissipation:	MAX 6W
Connector:	DVI-D	Operating Temperature:	-5℃ ~ +70℃
Size:	16811528mm	The Warranty:	1-year Warranty

1Ch 1080P DVI + USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

Overview

The LNK-KVM-DVI-1D1BA1GO is a high-performance fiber optic extender designed for

ultra-long-distance transmission of DVI video (up to 1080P), KVM signals, RS232 serial data, GPIO

control signals, and external audio over a single fiber optic cable.

Key Features:

✔ Crystal-Clear Video – Supports full HD 1080P resolution with zero latency

✔ Multi-Signal Integration – Combines DVI + KVM + RS232 + GPIO + Audio in one fiber link

✔ Long-Distance Reach– Extends signals reliably over fiber optic distances (exact range depends on

SFP module)

✔ Industrial-Grade Stability – Secure, interference-free transmission for mission-critical applications

✔ Flexible Deployment – Ideal for broadcast, control rooms, digital signage, and industrial automation

Applications:

Remote KVM & PC Control – Extend workstations over long distances
HD Video Distribution– Secure, high-quality video for surveillance or displays
Industrial Automation – Reliable signal transmission in EMI-heavy environments

Engineered for high fidelity and robust performance, the LNK-KVM-DVI-1D1BA1GO ensures seamless

integration of video, data, and control signals over fiber.

Features

► Transmits DVI video signals up to 60km over one fiber optic cable;

► Support HDMI loop out

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► Simple to install, plug and play

► Built-in automatic adjustment system, make the image smooth, clear and stable;

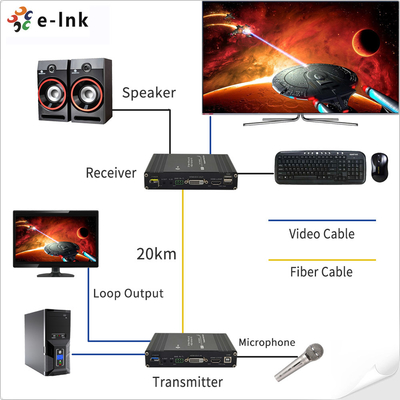

Application

Multi-functional DVI Fiber Optic Extender with USB KVM RS232 Bidi Stereo Audio GPIO 0

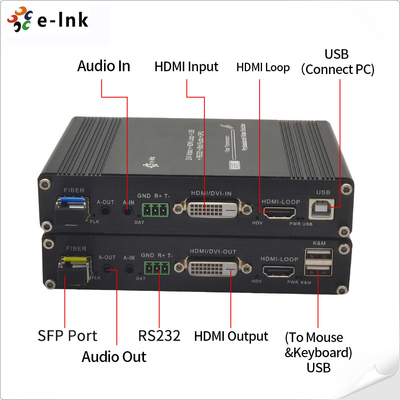

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty

Ordering Information

Model	Description
LNK-KVM-DVI-1D1BA1GO	1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
