Mini-type DVI Fiber Optic Extender with external stereo

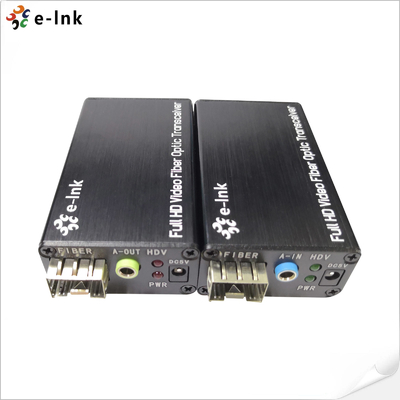

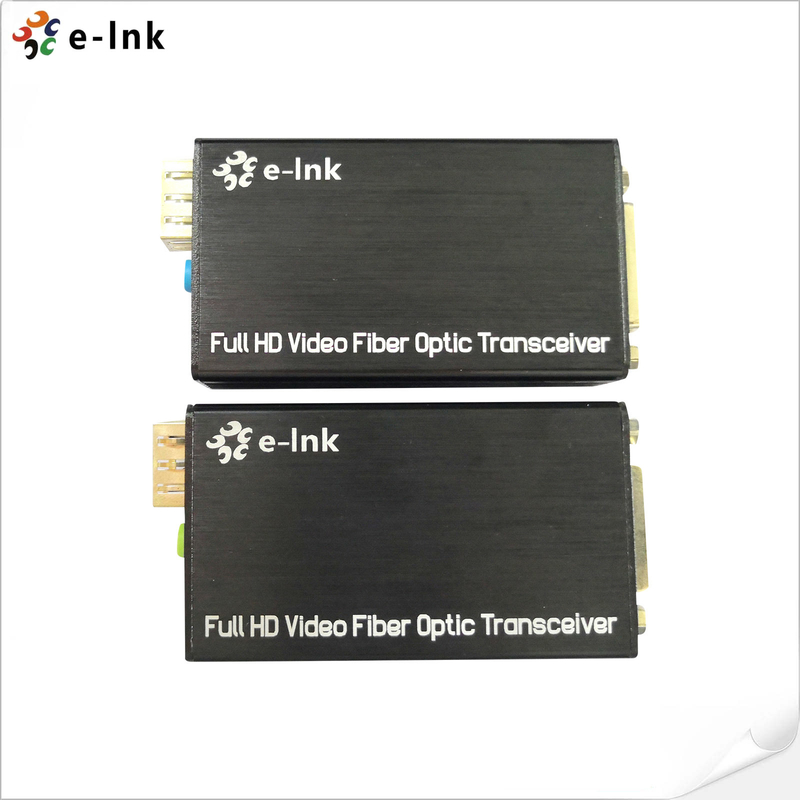

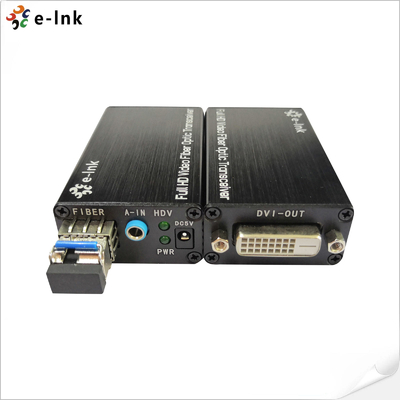

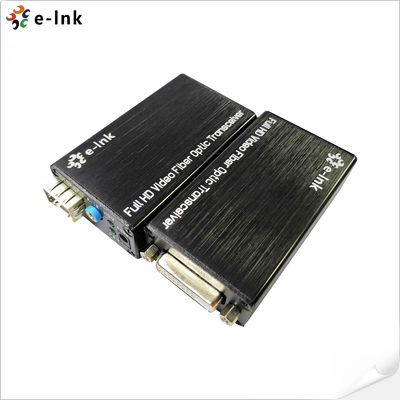

Overview
The LNK-MDF100 Series Mini DVI Fiber Optic Extender enables long-distance transmission of high-quality DVI video signals over a single fiber optic cable. Compliant with DVI 1.0 specifications, it supports resolutions up to 1920×1200@60Hz, ensuring clear, stable, and secure video output. Its compact design and robust performance make it ideal for applications such as digital signage, video conferencing, control rooms, and other environments requiring reliable high-resolution video over long distances.
Features
► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;
► Compliant with DVI 1.0 specifications ;
► Support 1920*1200 1080P@60Hz
► Special support 1600*1200 @60Hz
► Supporting pixel rates from 25MHz to 165MHz
► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Technical Indexes
| Parameter |
Description |
| Video |
Standards |
DVI1.0 3D; HDCP1.4 |
| Maximum pixel clock |
165MHz |
| Maximum data rate |
6.75Gbps |
| Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)
DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p
PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
Special support 1600*1200 @60HZ
|
| Connector |
Female DVI-D |
| Impedance |
100Ω |
| HDMI Cable Range |
<5Meter (Resolution up to 1920*1200@60Hz) |
| Audio |
Interface |
3.5MM external stereo audio |
| Optical fiber |
Interface |
SFP model – LC connector |
| Fiber type |
Single-mode; Multi-mode |
| Wavelength |
850nm/1310nm |
| Interface bandwidth |
3Gbps |
| Transmission distance |
Transmission@1920*1200@60Hz
Multi-mode fiber: <500M
Single-mode fiber: 20km
|
| Other |
Power supply |
The power adapter: DC 5V |
| Power dissipation |
MAX 1.2W |
| Temperature |
Operating: -20℃ ~ +70℃ |
| Humidity |
Operating: 5% ~ 90% |
| Dimension (LxWxH) |

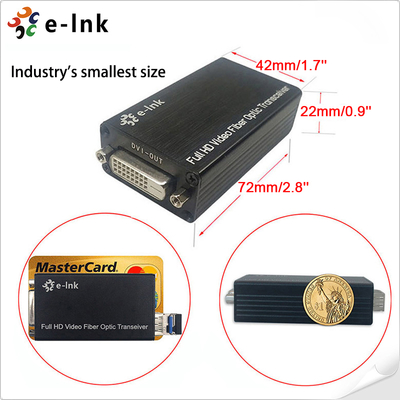

80 x 40 x 20 (mm) |
Ordering Information
| Model |
Description |
| LNK-MDF100 |
DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-MDF100S |
DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
