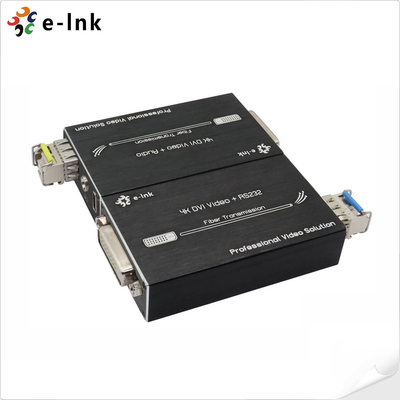

Micro 4K DVI Anti-interference Fiber Optic Extender with Stereo Audio

Large Image : Micro 4K DVI Anti-interference Fiber Optic Extender with Stereo Audio

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-MDA4K Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	DVI Video to Fiber Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Input Signals:	DVI	Fiber Connector:	SFP/LC
Dimension:	2.87 X 1.73 X 0.69in (73x44x17mm)	Power Supply:	5V DC (USB-C)
Operating Temperature:	-10 ~ + 50°C	Safety Approvals:	CE, FCC, Rohs

Mini 4K DVI Fiber Optic Extender with Stereo Audio

Overview

This professional-grade extender delivers uncompressed 4K*2K@60Hz (YUV 4:2:0) DVI and audio

signals over optical fiber up to 80km. Featuring 10Gb/s serial transmission technology, it converts DVI

to optical signals (Tx) and back (Rx) with zero quality loss.

RoHS compliant with superior anti-interference capability, it's perfect for large-screen displays,

conference systems, and home theaters requiring long-distance, high-fidelity signal transmission.

Key advantages:

✓ True 4K resolution

✓ 80km fiber transmission

✓ Signal integrity guaranteed

✓ Plug-and-play installation

Features

Uncompressed transmission, No delay, No losses
Transmission distance up to 80km over fiber cable
Support 3.5mm External Stereo Audio
Hot-Pluggable, EMI/RFI Resistant

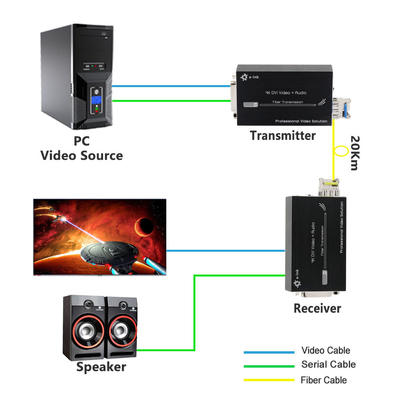

Application

Technical Indexes

Type of Extender	Fiber Transmitter for DVI signal over Optical Fiber Cable
Input Signals	DVI
Connector	DVI-D
Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 ~ + 50°C
Storage Temperature	-20 ~ + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Ordering Information

Model	Description
Model	Description
LNK-MDA4K-MM	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S20	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S40	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S80	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
