Micro DVI Fiber Optic Extender with external stereo

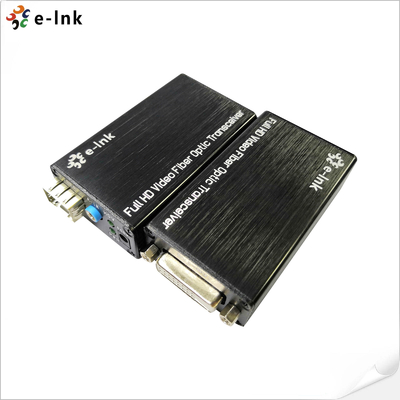

Large Image : Micro DVI Fiber Optic Extender with external stereo

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	The LNK-MDF100

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	DVI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	DVI To Fiber Optic Converter	Power Supply:	The Power Adapter: DC 5V
Power Consumption:	MAX 1.2W	Dimension:	80 X 40 X 20 (mm)
Wavelength:	850nm/1310nm	Operating Temperature:	-20℃ ~ +70℃

DVI Over Fiber Optic Extender's Product Description:

This DVI Over Fiber Optic Extender provides extension of DVI signals long distances over one fiber optic cable This DVI Over Fiber Optic Extender supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. This DVI Over Fiber Optic Extender can be used for a wide range of applications requiring long distance transmission of high resolution with high quality because this DVI Over Fiber Optic Extender presents good stability and powerful security.

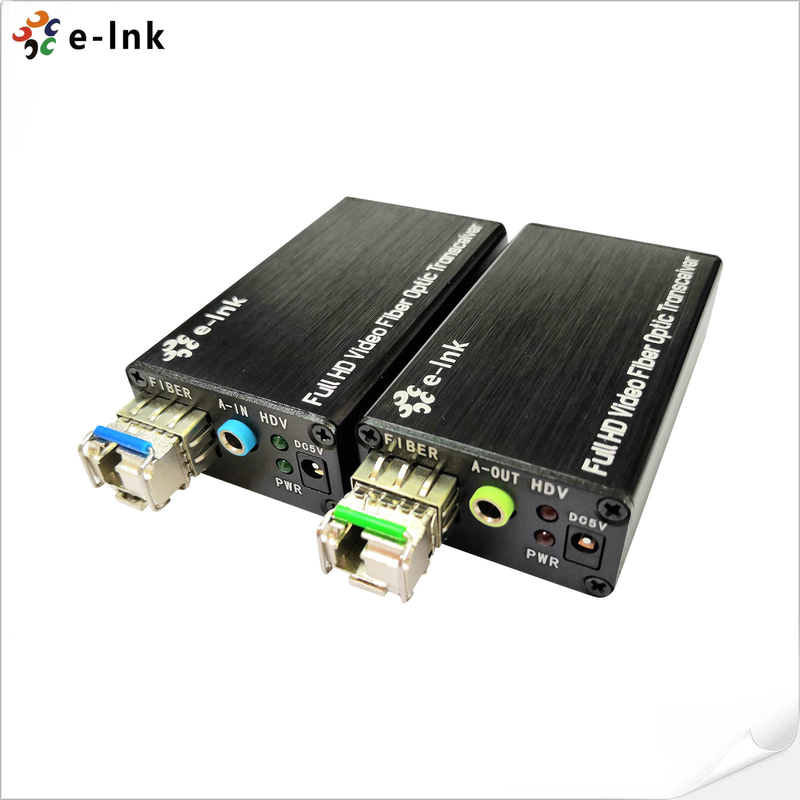

Micro DVI Fiber Optic Extender with external stereo 0

DVI Over Fiber Optic Extender's Features:

► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;

► Compliant with DVI 1.0 specifications ;

► Support 1920*1200 1080P@60Hz

► Special support 1600*1200 @60Hz

► Supporting pixel rates from 25MHz to 165MHz

► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p

► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system.

DVI Over Fiber Optic Extender's Technical Parameters:

Video	Standards	DVI1.0 3D; HDCP1.4
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Compliant	1080P@50/59.95/60Hz,( Max 19201200@60Hz) DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA Special support 16001200 @60HZ
	Connector	Female DVI-D
	Impedance	100Ω
Audio	Interface	3.5MM external stereo audio
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode; Multi-mode
	Interface bandwidth	3Gbps
	Transmission distance	Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km

DVI Over Fiber Optic Extender's Application:

Micro DVI Fiber Optic Extender with external stereo 1

DVI Over Fiber Optic Extender‘s Support and Services:

DVI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

DVI Over Fiber Optic Extender's Packing and Shipping:

DVI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

DVI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-MDF100	DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-MDF100S	DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
