1Ch 1080P DVI plus USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

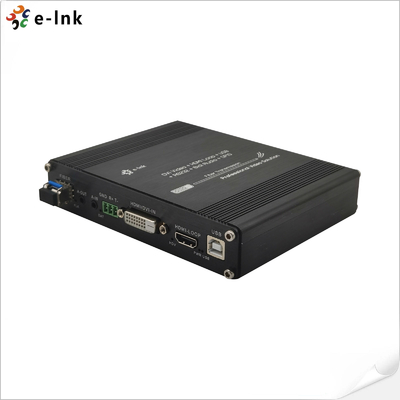

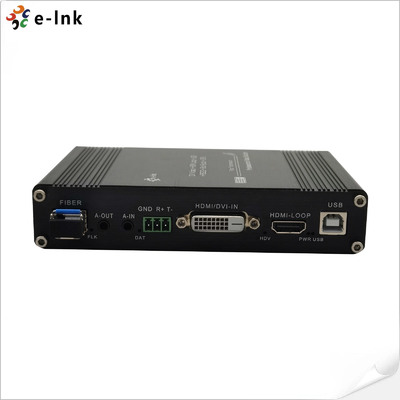

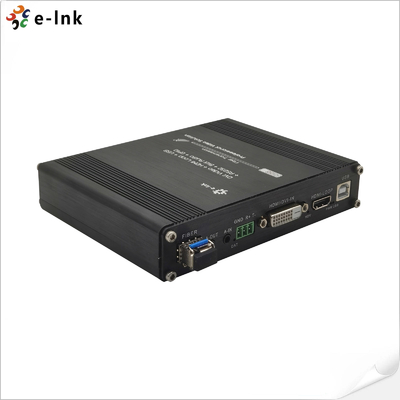

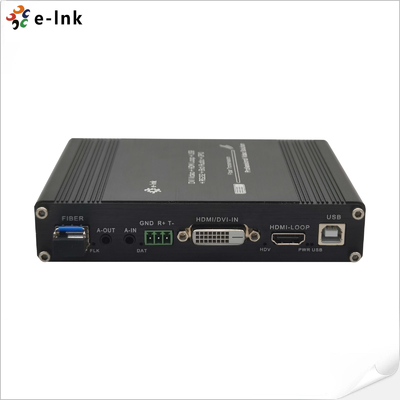

Large Image : 1Ch 1080P DVI plus USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-KVM-DVI-1D1BA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	DVI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	DVI To Fiber Optic Converter	Transmission Distance:	Standard 10km
Power Consumption:	MAX 6W	Dimension:	14811528mm
Interface:	LC Connector	Operating Temperature:	-5℃ ~ +70℃

DVI Over Fiber Optic Extender's Product Description:

This DVI Over Fiber Optic Extender provides extension of DVI signals long distances over one fiber optic cable.This DVI Over Fiber Optic Extender supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. This DVI Over Fiber extender can be used for a wide range of applications requiring long distance transmission of high resolution with high quality because this DVI Over Fiber Optic Extender presents good stability and powerful security.

1Ch 1080P DVI plus USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender 0

DVI Over Fiber Optic Extender's Features:

► Transmits DVI video signals up to 60km over one fiber optic cable;

► Support video resolution up to 1920*1200P@60Hz;

► Support keyboard and mouse signal transmission;

► Support external stereo audio bi-directional transmission;

► Support RS232 signal unidirectional transmission, baud rate self-adaptive;

► Support general-purpose input/output (GPIO) signal;

► Support HDMI loop out

► Compliance with DVI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system.

DVI Over Fiber Optic Extender's Technical Parameters:

Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8

DVI Over Fiber Optic Extender's Application:

1Ch 1080P DVI plus USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender 1

DVI Over Fiber Optic Extender‘s Support and Services:

DVI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

DVI Over Fiber Optic Extender's Packing and Shipping:

DVI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

DVI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-KVM-DVI-1D1BA1GO	1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
