10/100/1000M 24V 1A PoE Splitter

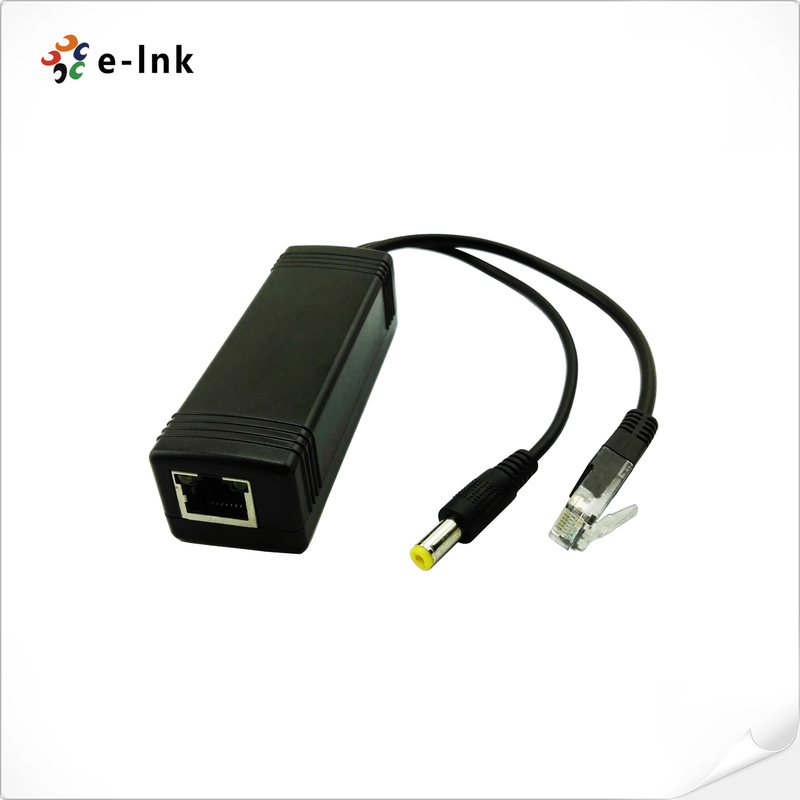

E-lnk Gigabit 24V PoE Splitter Overview
The LNK-SP24WG PoE Splitter provides a versatile power delivery solution that seamlessly integrates standard network equipment into modern PoE-enabled infrastructure. Engineered to meet IEEE 802.3af/at specifications, this advanced splitter efficiently separates combined data and power signals from PoE switches or injectors, delivering stable 24V DC output to devices that lack native PoE compatibility. Its compact design enables flexible deployment of surveillance cameras, wireless access points, and industrial controllers in locations where electrical wiring is impractical. By eliminating the need for additional power outlets and dedicated electrical circuits, the unit significantly reduces installation complexity and infrastructure costs. Ideal for expanding smart city networks, security systems, and commercial IoT applications, this splitter ensures reliable performance while maintaining full compliance with international power over ethernet standards.
E-lnk Gigabit 24V PoE Splitter Features
- Stable 24V DC Power Delivery - Provides consistent 24V/1A output with high conversion efficiency, specifically engineered for 24V network devices requiring reliable power supply under varying load conditions
- Extended Reach Connectivity - Supports power and data transmission up to 150 meters using quality full-copper low-resistance Ethernet cables, effectively overcoming standard distance limitations in network deployment
- Dual Standard Compliance - Certified compliant with both IEEE 802.3af and 802.3at standards, ensuring seamless interoperability with various PoE power sourcing equipment from different manufacturers
- Broad Voltage Compatibility - Accommodates wide input voltage range of DC 38-56V, maintaining stable performance despite power fluctuations and compatible with diverse power supply environments
- True Plug-and-Play Installation - Enables immediate operation without configuration requirements, allowing rapid deployment and reducing installation time and technical expertise needed
- Advanced Circuit Protection System - Incorporates high-performance AKros AS1138 protection chip with comprehensive surge and lightning protection, effectively safeguarding connected equipment from electrical damage
- Enhanced EMI Shielding - Features fully-shielded RJ45 ports with superior electromagnetic interference protection, ensuring signal integrity and reliable data transmission in electrically challenging environments
- Universal Polarity Design - Implements intelligent full-bridge rectification circuitry supporting non-polarity input, eliminating connection orientation concerns and preventing installation errors
E-lnk Gigabit 24V PoE Splitter Application
• Legacy Security System Integration - Facilitates migration of conventional 24V security devices including PTZ cameras, analog camera adapters, and access control systems into modern IP-based surveillance networks with PoE infrastructure
• Industrial Automation Networks - Supports connectivity for industrial-grade equipment including sensor arrays, motor controllers, and machine vision systems in manufacturing environments with electrical interference challenges
• Extended-Range Wireless Deployment - Enables installation of wireless access points, network bridges, and 5G small cells in long-distance applications up to 150 meters from the power source, ideal for campus and outdoor coverage
• Critical Infrastructure Protection - Provides surge and lightning-protected power for outdoor security cameras, perimeter detection systems, and license plate recognition equipment in harsh environmental conditions
• Commercial AV & Digital Signage - Powers professional audio-visual equipment, digital signage displays, and information kiosks through structured cabling infrastructure without requiring separate power circuits
E-lnk Gigabit 24V PoE Splitter Technical Indexes
|
Model
|
LNK-SP24WG
|
|
DC out
|
24V 1A
|
|
Power
|
25W
|
|
distance
|
10BASE-T: cat 5 UTP(≤100m)
100BASE-TX: cat 5 and above UTP(≤100m)
|
|
Port
|
1 GE(10/100/1000M) POE input+1 Network+1 DC output
|
|
POE
|
IEEE POE++/IEEE 802.3af /IEEE802.3at,
IEEE802.1af DTE Power via MDI
|
|
Network
protocol
|
IEEE 802.3i 10BASET；
IEEE 802.3u 100BASETX；
IEEE 802.3x Flow Control
|
|
Environmental
|
Working Temperature:-20°～55°C
Storage temperature:-40°～85°C
Working Humidity: 10%～90% RH non-condensing
Storage Humidity: 5%～90% RH non-condensing
|
|
Radiation
|
CE mark,commercial,FCC Part 15 Class B,RoHS
|
|
Product Size
|
250mm*28mm*24mm
|
|
Weight
|
0.2kg
|
E-lnk Gigabit 24V PoE Splitter Ordering Information
|
Model
|
Description
|
|
LNK-SP24WG
|
PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
|
