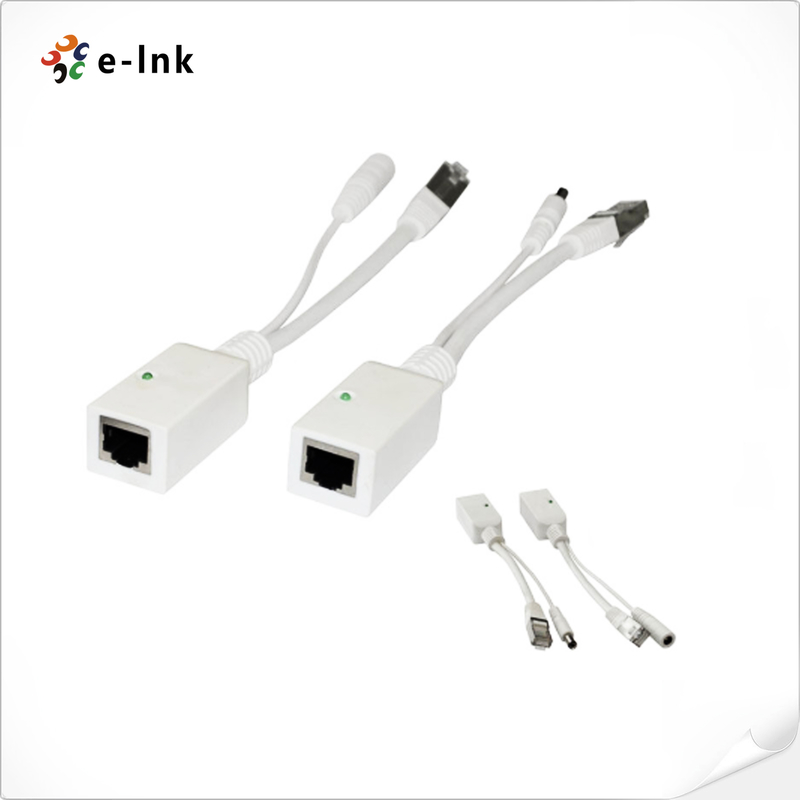

Gigabit Passive PoE Kit Injector + Splitter for AP IP Camera VoIP

Large Image : Gigabit Passive PoE Kit Injector + Splitter for AP IP Camera VoIP

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-POE2GP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$6.9-$9.9
Packaging Details:	PoE Splitter Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Kit Includes:	1x Passive Gigabit Injector, 1x Passive Splitter	Ethernet Speeds:	10/100/1000 Mbps (Gigabit-ready)
Input Voltage:	9–48V DC (Max 56V)	Power Output:	Up To 1A, Passive Mode
LED Indicator:	Green – Voltage Present	Operating Range:	0°C–45°C, 5%–90% RH

Gigabit Passive PoE Kit Injector + Splitter for AP IP Camera VoIP

Overview

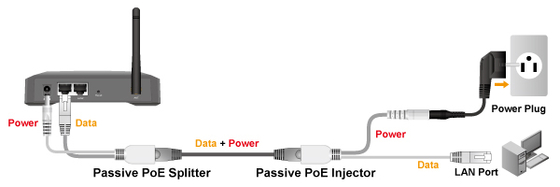

The LNK-POE2GP Passive PoE Kit combines a gigabit injector and splitter to deliver both power and

data over a single Ethernet cable. Designed for non-PoE devices such as APs, IP cameras, CPE, and

VoIP phones, it offers a plug-and-play setup with wide 9–48VDC input support. With solid copper wiring,

shielded connectors, and built-in overcurrent protection, it ensures stable performance for fast

10/100/1000 Mbps networks up to 150 feet.

Features

Complete kit: Gigabit injector + splitter

Wide 9–48VDC input with 2.1×5.5mm DC connectors

Supports 10/100/1000 Mbps Ethernet speeds

Plug-and-play, no configuration required

Compliant with IEEE 802.3af/at PoE standards

Green LED indicator shows active power status

Overcurrent protection for device safety

Compact ABS housing, lightweight and durable

Works up to 150 feet depending on cable and load

Technical Indexes

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Input Voltage	9 to 48VDC +/- 5%, Maximum 56VDC
Power Pin Assignment	• Data provide over pairs 1/2(+) and 3/6(-)
Power Pin Assignment	• Power over spare pairs 4/5(+) and 7/8(-)
Ethernet Data Rate	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximum Output Current	1A
Over Current Protection	Yes
Ethernet Connectors	Shielded with Internal Drain Wire
Internal Wire Size	24 AWG Solid Copper
DC Connector Size	5.5 x 2.1 mm
LED	Green Indicating Voltage Present
Housing Material	ABS
Dimensions	Length = 8 inches (20.3 cm)
Weight:	96 grams (3.3 ounces)
Operating Temperature:	0°C to 45°C (-32°F to 113°F)
Storage Temperature:	-30°C to 70°C (-22°F to 158°F)
Relative Humidity:	5% to 90% non-condensing

Ordering Information

Model	Description
LNK-POE-2GP	Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors
