10/100M 24V 1A PoE Splitter

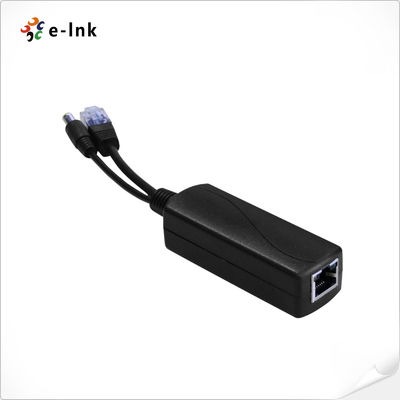

E-lnk 10/100M 24V PoE Splitter Overview
The LNK-SP24W PoE Splitter offers a professional-grade solution for deploying network equipment in locations where traditional power access is limited. Designed to IEEE 802.3af/at standards, this compact device efficiently separates Power over Ethernet signals into independent data streams and 24V DC power output. It delivers stable 24V 1A power to various non-PoE network devices, enabling flexible installation of wireless access points, security cameras, and other terminal equipment without requiring separate electrical wiring. By integrating seamlessly with existing PoE switches and injectors, this splitter significantly reduces infrastructure costs while expanding network coverage in smart city deployments, commercial security systems, and industrial IoT applications. The solution eliminates power placement constraints, providing reliable connectivity and simplified maintenance for modern networked environments.
E-lnk 10/100M 24V PoE Splitter Features
-
Stable 24V 1A DC Output - Provides consistent 24V/1A power delivery suitable for various network devices requiring higher voltage input, maintaining stable performance under different load conditions
-
Extended 150-Meter Transmission - Achieves maximum 150-meter power and data transmission using full-copper low-resistance Ethernet cables, enabling flexible device placement beyond standard distance limitations
-
Dual Standard Compliance - Fully compatible with both IEEE 802.3af and IEEE 802.3at standards, ensuring broad interoperability with different PoE power sourcing equipment
-
Wide Voltage Input Range - Accepts DC 16-55V power input, accommodating various power supply conditions and voltage fluctuations while maintaining consistent output performance
-
True Plug-and-Play Operation - Requires zero configuration for immediate deployment, allowing quick installation and setup without technical expertise or software adjustment
-
Advanced Circuit Protection - Incorporates premium-grade components including the AKros AS1138 protection chip with surge and lightning protection, safeguarding connected equipment from power anomalies
-
Enhanced Connectivity - Features fully-shielded RJ45 ports with electromagnetic interference protection, ensuring reliable data transmission in electrically noisy environments
-
Universal Polarity Design - Implements full-bridge circuit architecture supporting non-polarity input, eliminating connection errors and simplifying installation procedures
E-lnk 10/100M 24V PoE Splitter Application
• Legacy Security System Upgrades - Enables integration of conventional 24V security devices including PTZ cameras, analog camera adapters, and access control systems into modern PoE networks
• Industrial Network Deployments - Supports connectivity for industrial-grade equipment such as sensor networks, machine vision systems, and factory automation devices in harsh electrical environments
• Long-Distance Wireless Coverage - Facilitates installation of wireless access points, network bridges, and 5G small cells in extended-range applications up to 150 meters from power source
• Outdoor Surveillance Solutions - Provides surge-protected power for outdoor IP cameras, license plate recognition systems, and perimeter security devices with lightning protection capability
• Broadcast & AV System Integration - Powers professional audio-visual equipment, digital signage players, and conference systems through structured cabling infrastructure
E-lnk 10/100M 24V PoE Splitter Technical Indexes
|
Model
|
LNK-SP24W
|
|
DC out
|
24V 1A
|
|
Power
|
25W
|
|
distance
|
10BASE-T: cat 5 UTP(≤100m)
100BASE-TX: cat 5 and above UTP(≤100m)
|
|
Port
|
1 FE(10/100M) POE input+1 Network+1 DC output
|
|
POE
|
IEEE POE++/IEEE 802.3af /IEEE802.3at,
IEEE802.1af DTE Power via MDI
|
|
Network
protocol
|
IEEE 802.3i 10BASET；
IEEE 802.3u 100BASETX；
IEEE 802.3x Flow Control
|
|
Environmental
|
Working Temperature:-20°～55°C
Storage temperature:-40°～85°C
Working Humidity: 10%～90% RH non-condensing
Storage Humidity: 5%～90% RH non-condensing
|
|
Radiation
|
CE mark,commercial,FCC Part 15 Class B,RoHS
|
|
Product Size
|
200mm*22mm*23mm
|
|
Weight
|
0.2kg
|
E-lnk 10/100M 24V PoE Splitter Ordering Information
|
Model
|
Description
|
|
LNK-SP24W
|
PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
